low power digital volume amplifier module for Gameboy advance SP GBASP sound amp
low power digital volume amplifier module for Gameboy advance SP GBASP sound amp
Couldn't load pickup availability
SPECIFICATIONS
Accessories Type: Audio Processing/Amplifier Board
Brand Name: NICOS
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: GameBoy Advance SP
Electric: No
Hign-concerned Chemical: None
Model Number: NO
Origin: Mainland China
With USB: NO
Before use, please make sure that the sound of your motherboard is normal, and the volume knob, audio chip and capacitor are not aging and damaged.
Installation requires skilled welding skills.
Product features:
low power consumption.
The volume can be expanded to two to three times the original.
It supports refitting and using with IPS LCD screen at the same time.

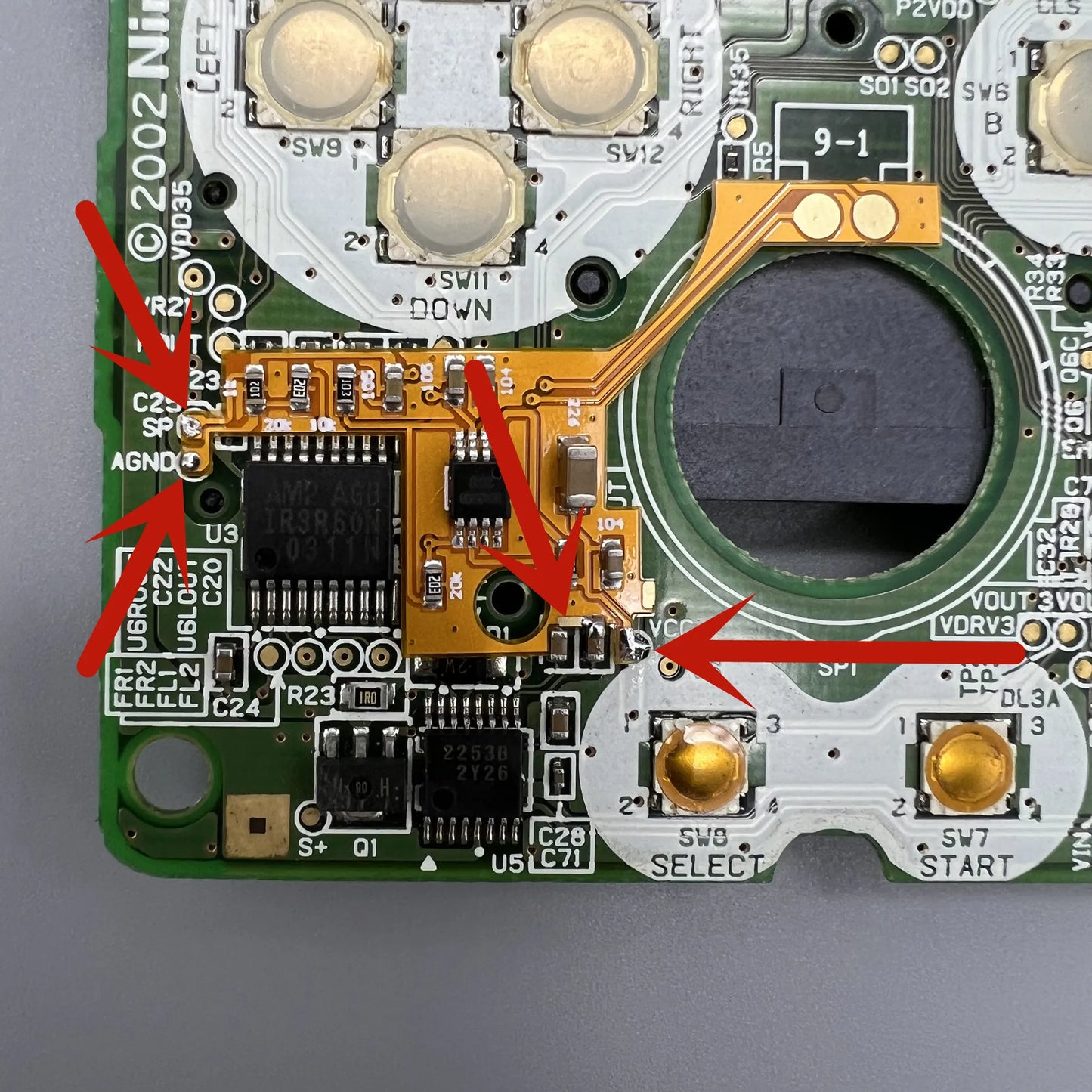

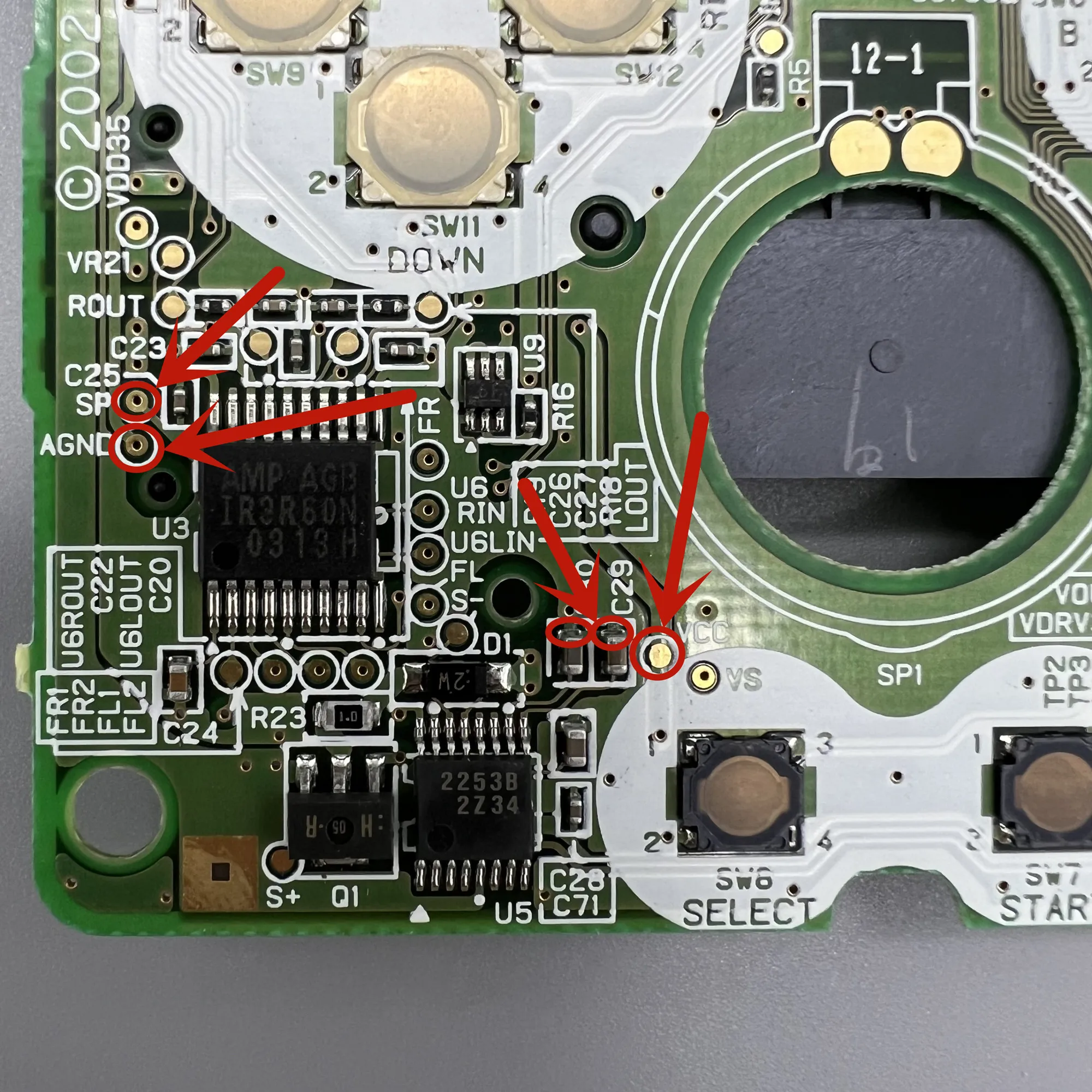

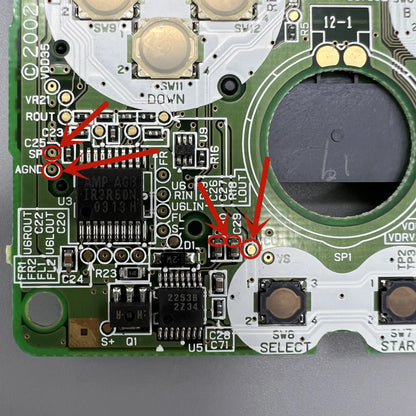

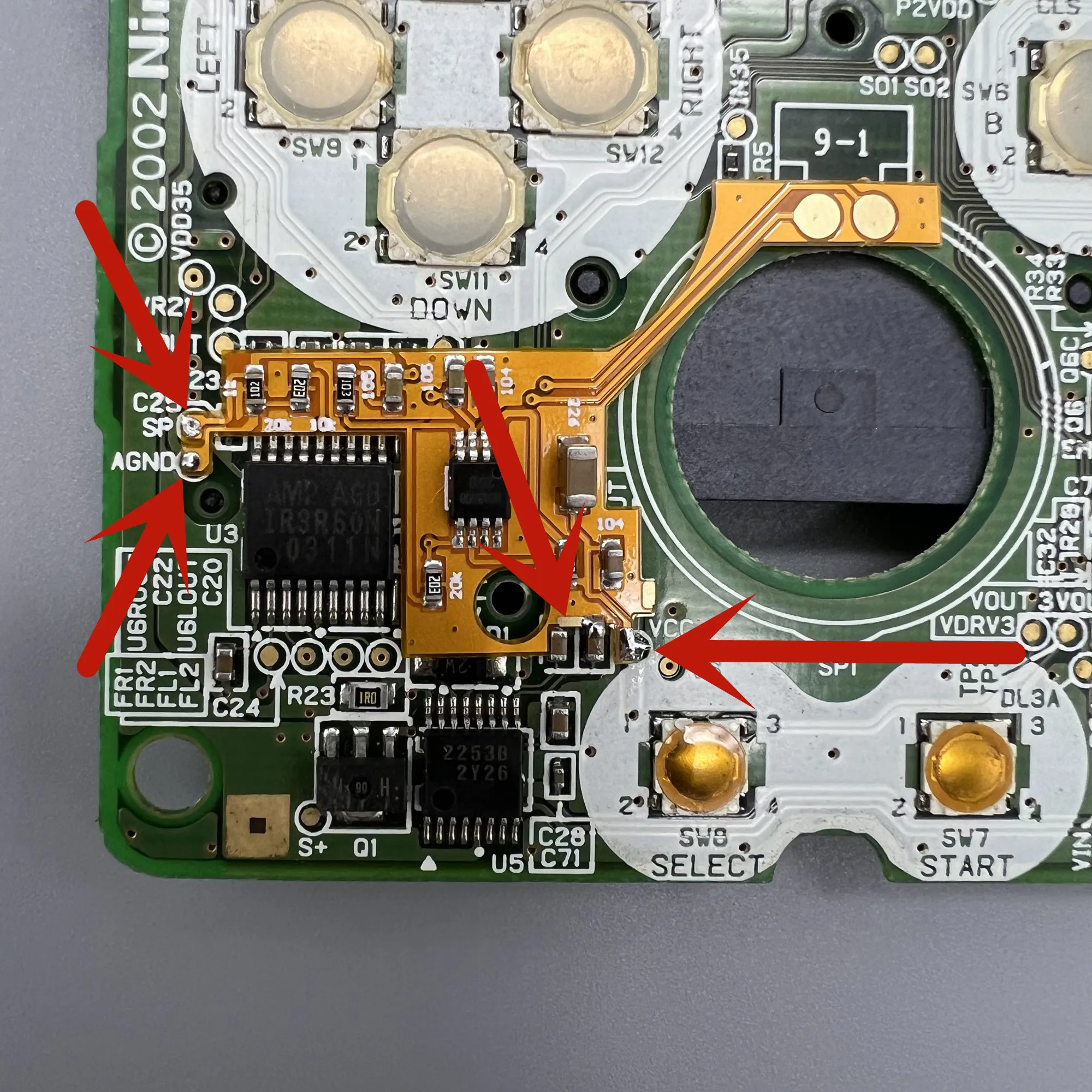

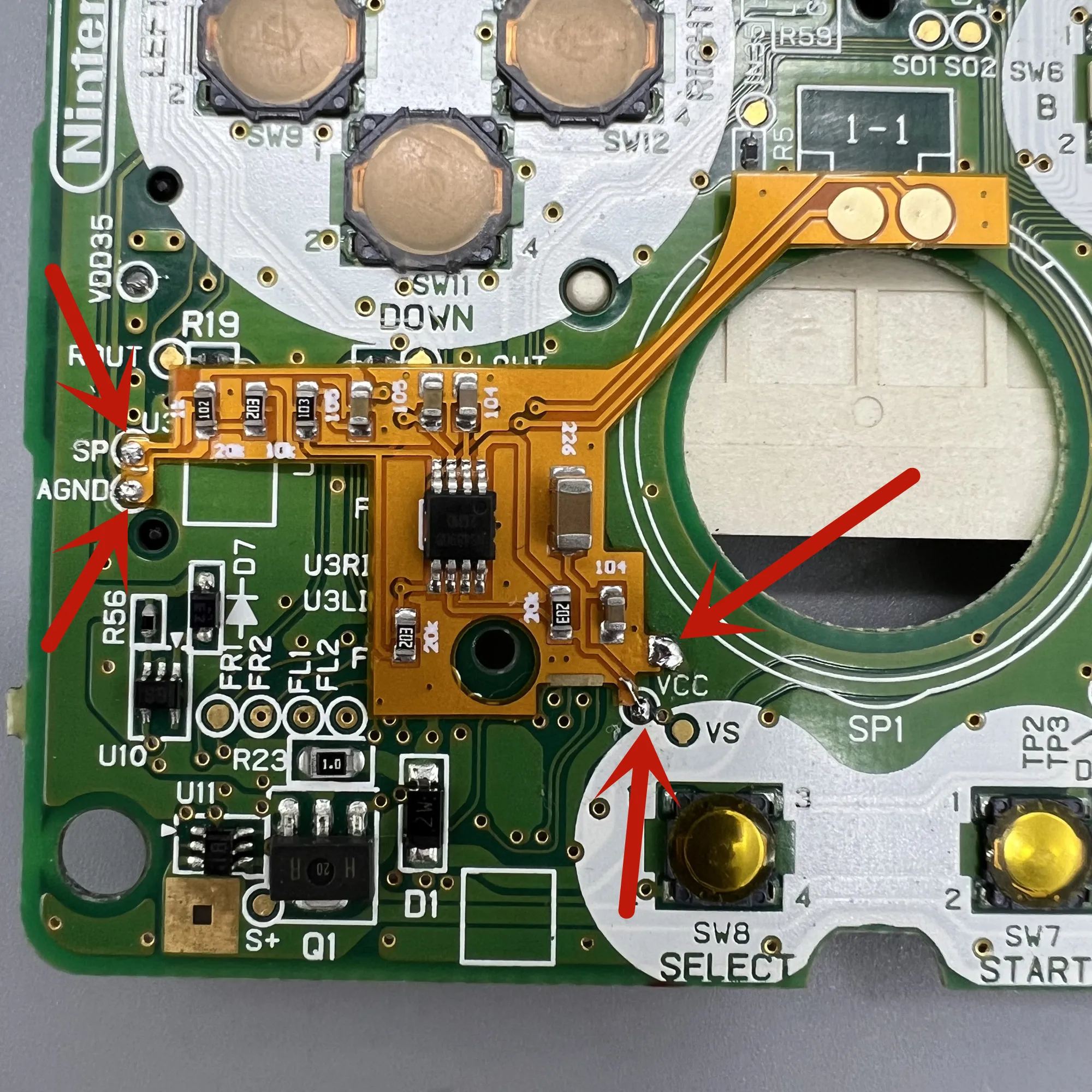

There are two types of GBASP motherboards. There are some differences in the welding points, please see the pictures below.

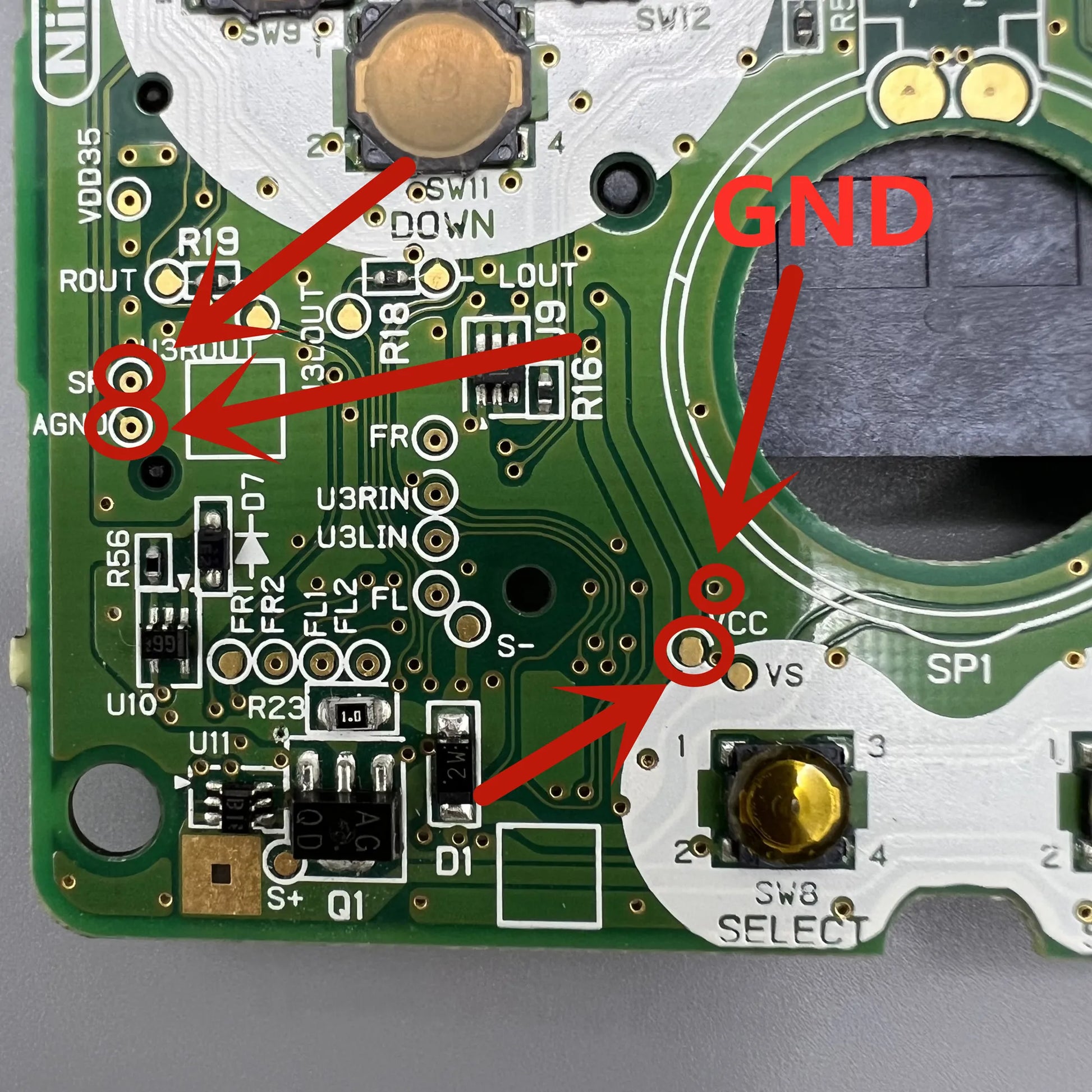

This GND solder joint is relatively small and not easy to weld.
GND can be connected to other locations.
The welding point of the two capacitors is GND. They are interconnected. You can weld one or both at will.
