1. ThisRGB mod uses THS7374 amp to display clearer and smoother images

2. Can be directly connected to RGB Monitor(by N64 RGBS cable) or can be  used with OSSC ( by N64 SCART RGB cable )

Description:

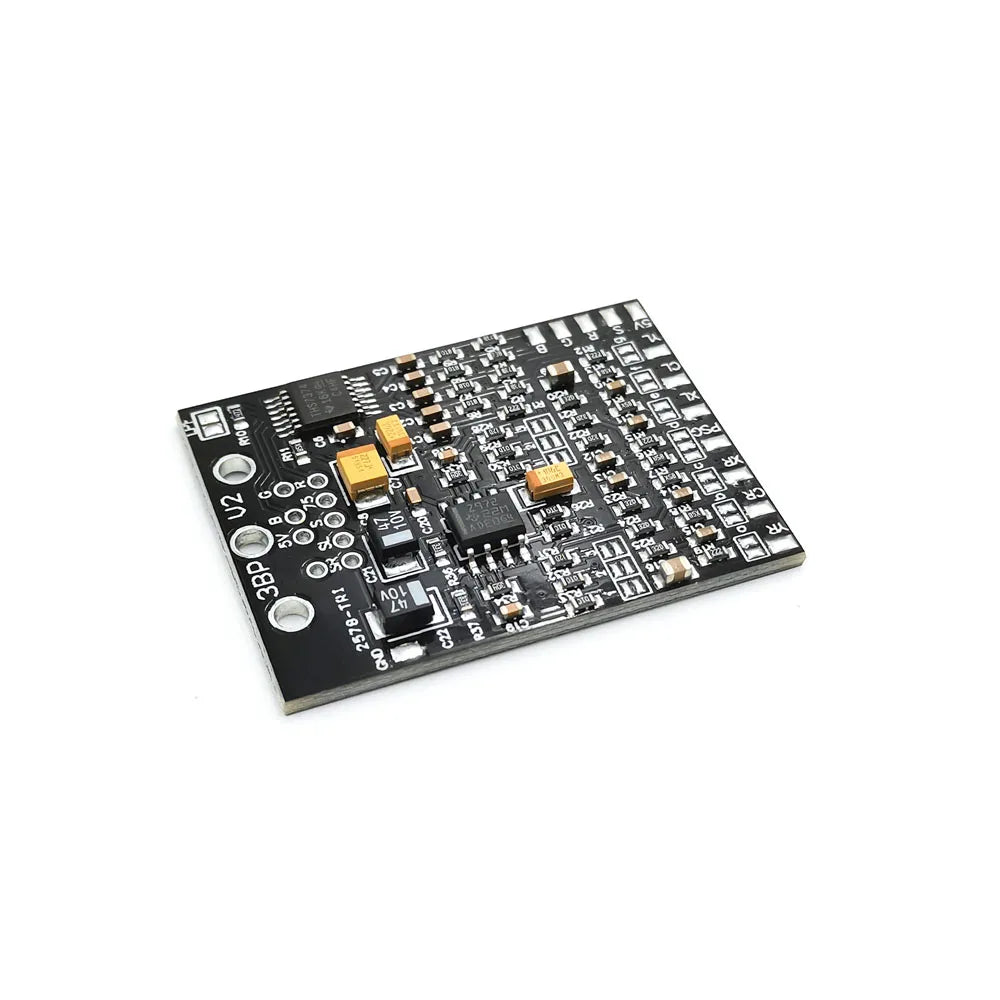

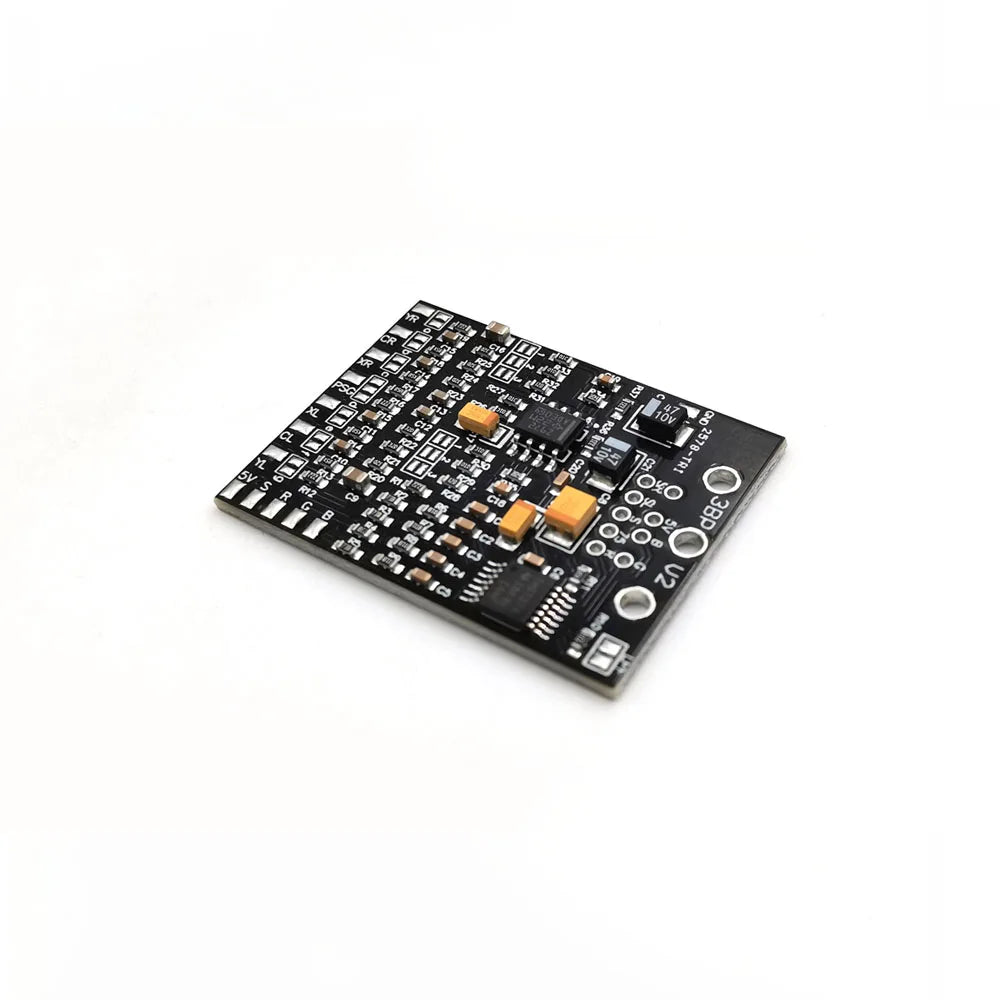

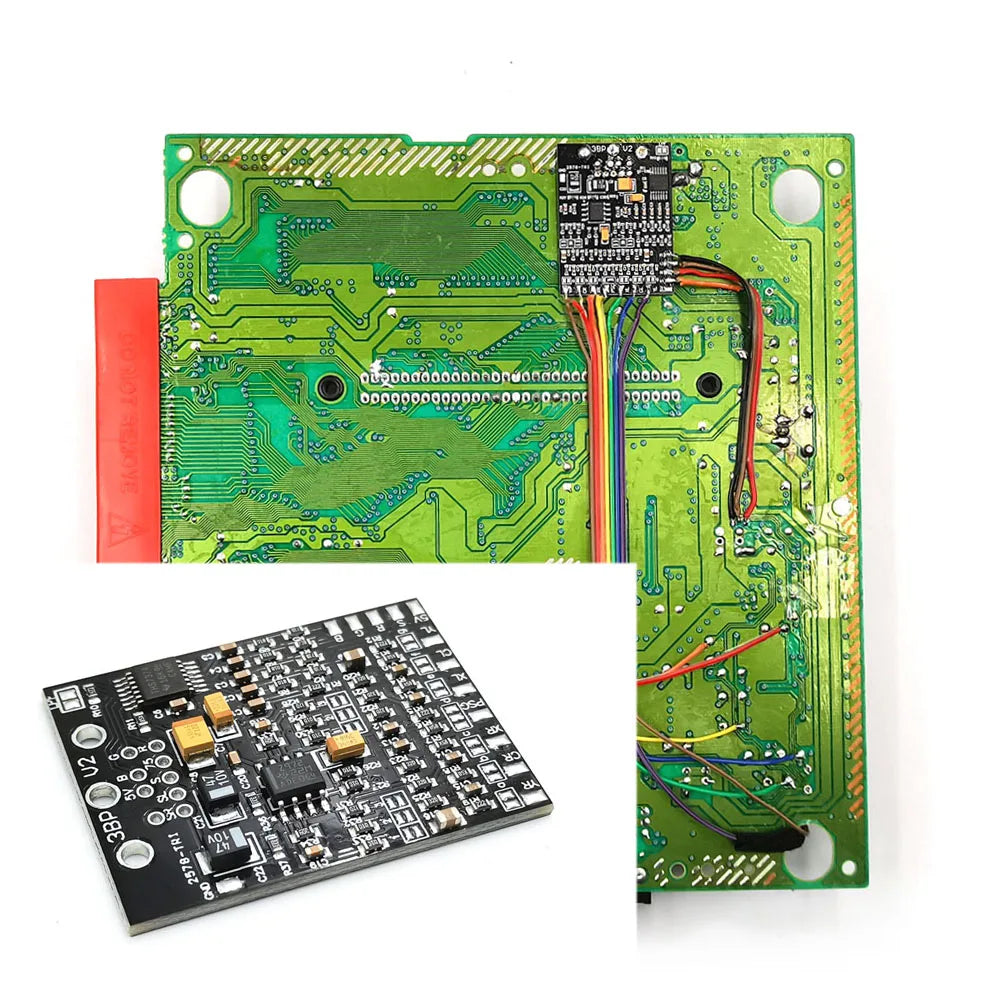

The Sega Mega Drive / Genesis triple bypass board V2 (3BPV2) is an RGB bypass board and audio amplifier board in one, for Mega Drive / Genesis MK1, Mega Drive 2 and Genesis 3 consoles.

This board implements two different mods in one, a high quality THS7374 video amplifier that cleans the signal and provides crisp clear pixels on your monitor (it also resolves the infamous "jailbars" issue mostly evident on Mega Drive 2 consoles), and the "Mega Amp 2" mod that cleans up the console's muffled audio (again, most notable on Mega Drive 2 consoles).

The V2 of the Triple Bypass now includes all needed configurations for all consoles, and can be set up with the use of the jumpers on the board (model instructions printed at the back of the board).

The V2 audio output has also been optimised with MDFourier to match the output of the best Model 1 Mega Drive / Genesis consoles.

You can also order the mod with a 9 pin Mini DIN connector if your project requires it, however it is usually not necessary as the RGB output can be routed to the consoles existing video connector.

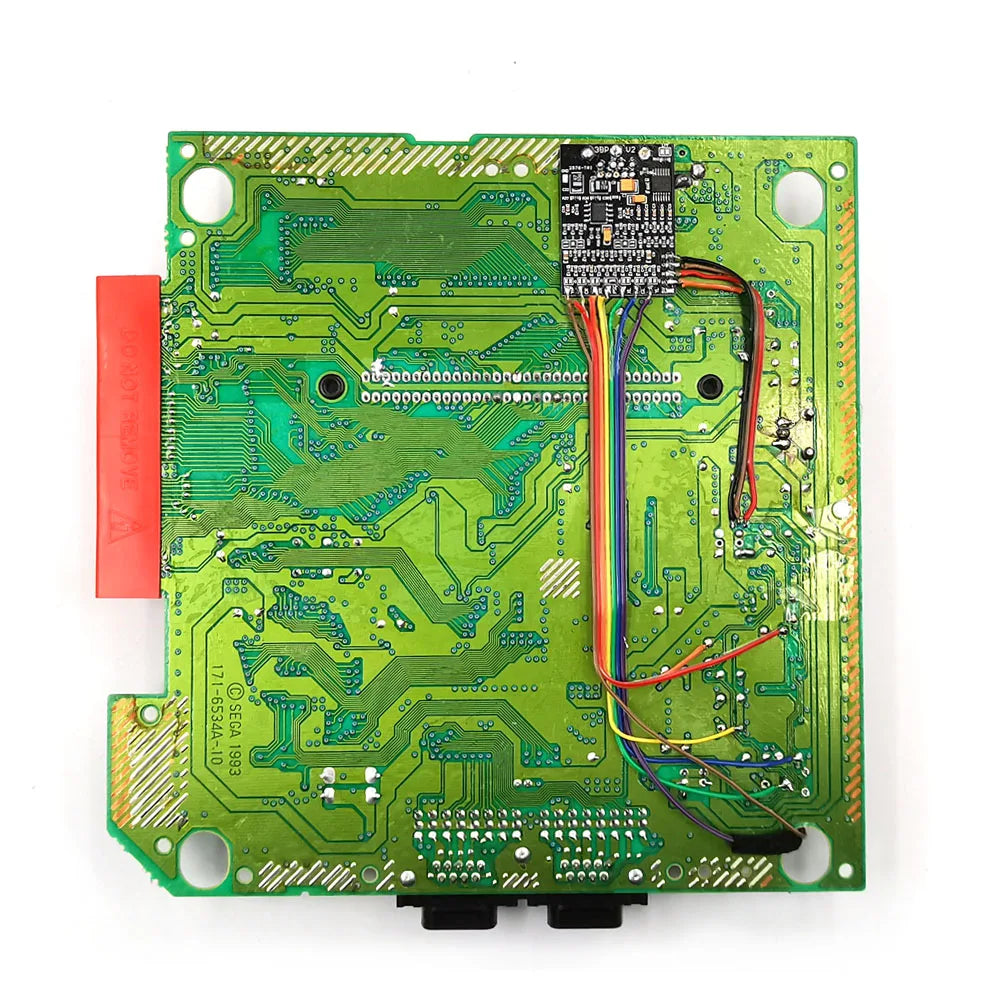

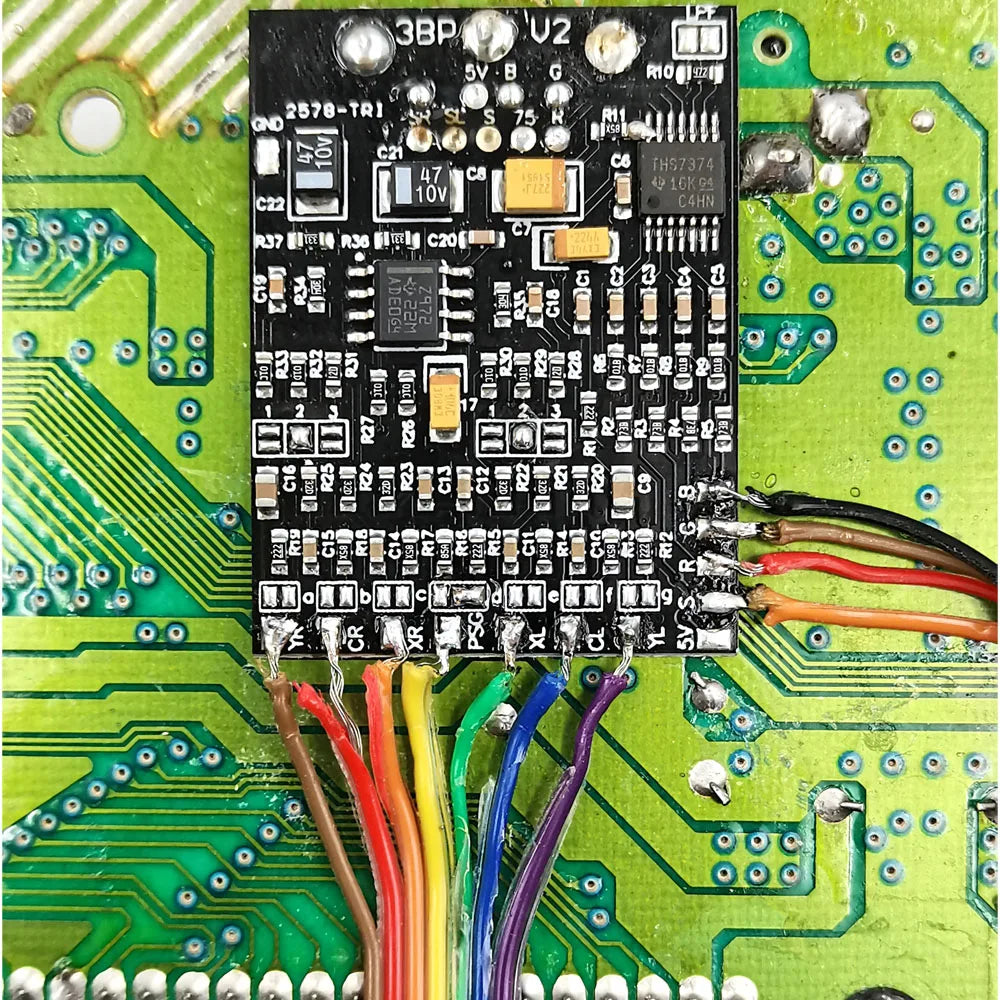

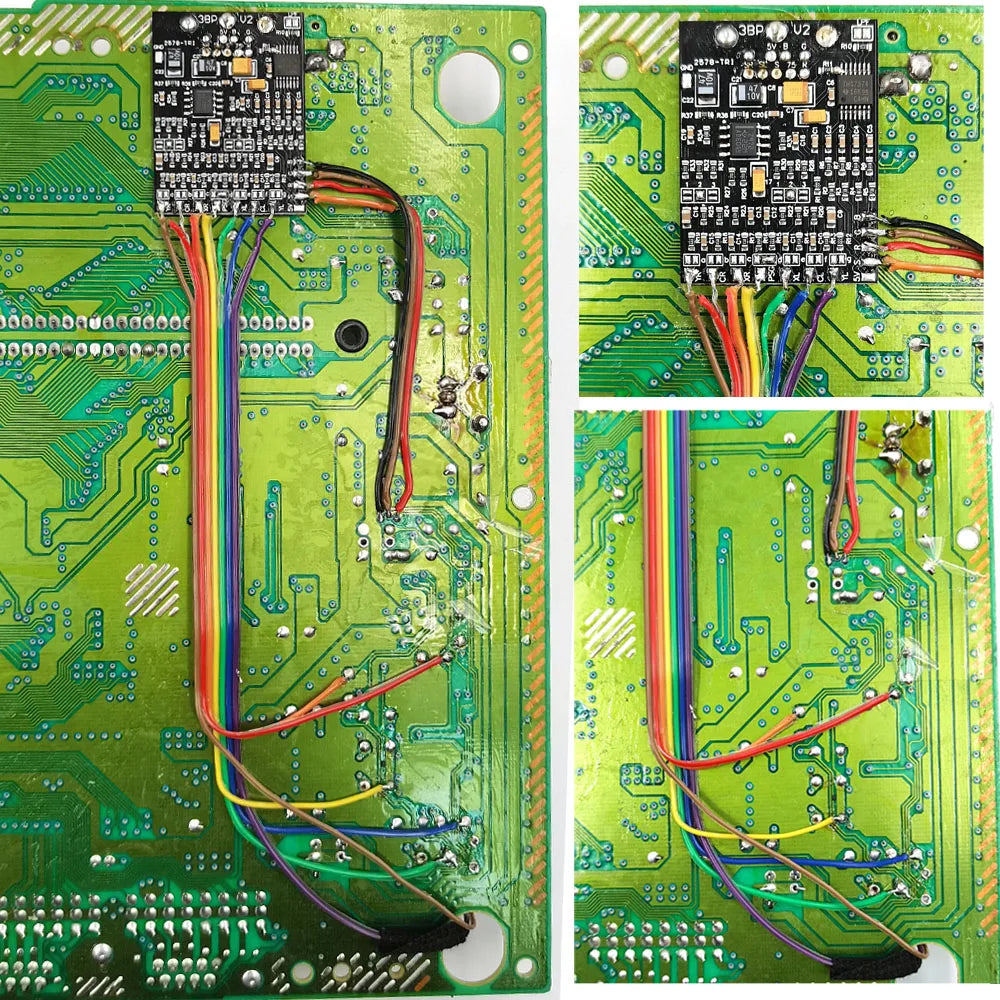

Installation instructions:

Please note this is a complex modification and requires soldering skills. Please study the installation instructions carefully before ordering.

For more information and fitting instructions, visit at RetroRGB.com

And, you also can find many installation video online.
