SPECIFICATIONS

Accessories Type: Chip/Modchip

Brand Name: HISPEEDIDO

Compatible Brand/Model: Nintendo

Compatible Nintendo Model: Nintendo64

Electric: No

Hign-concerned Chemical: None

Model Number: for N64

Origin: Mainland China

With USB: no

Caution

• Don't leave the console powered on for more than 1 minute when the heatsink is not installed.

• Require welding skills. Required cut a mini HDMI port squre on your console shell.

• Do not sold too much tin to connect the pins.




N64 HDMI

• This N64-HDMI Mod kit is compatible with all N64 models/regions, with the exception of 'Pi_ka_chu' models.

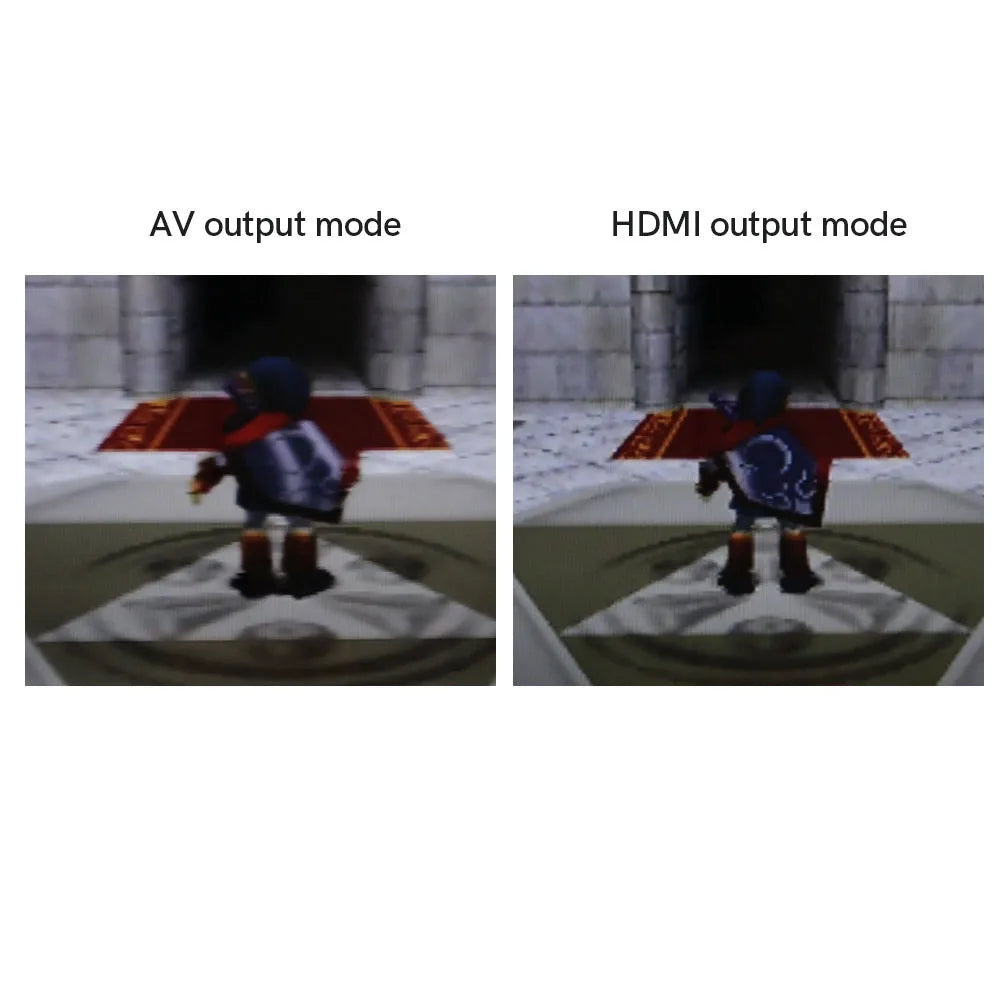

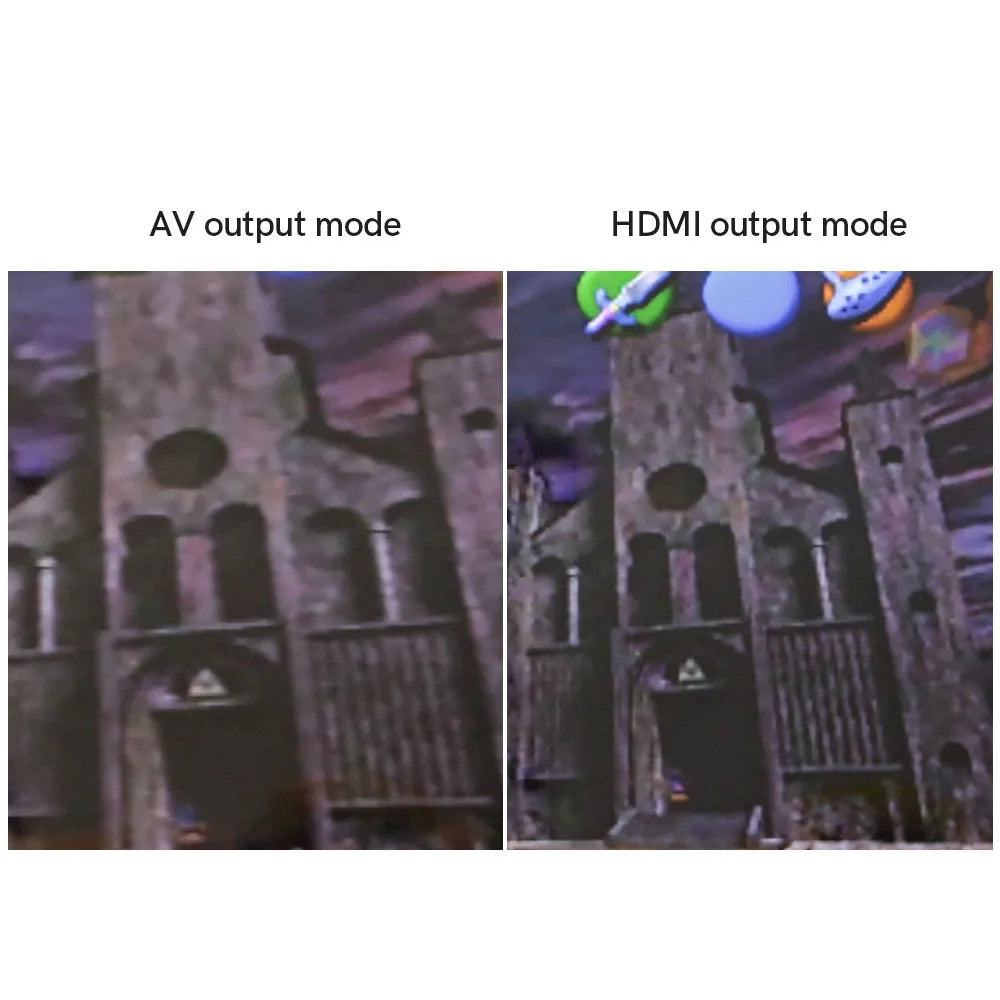

• This N64-HDMI kit is a digital to digital HDMI output upgraded for the Nintendo 64.

• 720P HDMI-Compatible Output.

•


• Built-in OSD Menu.

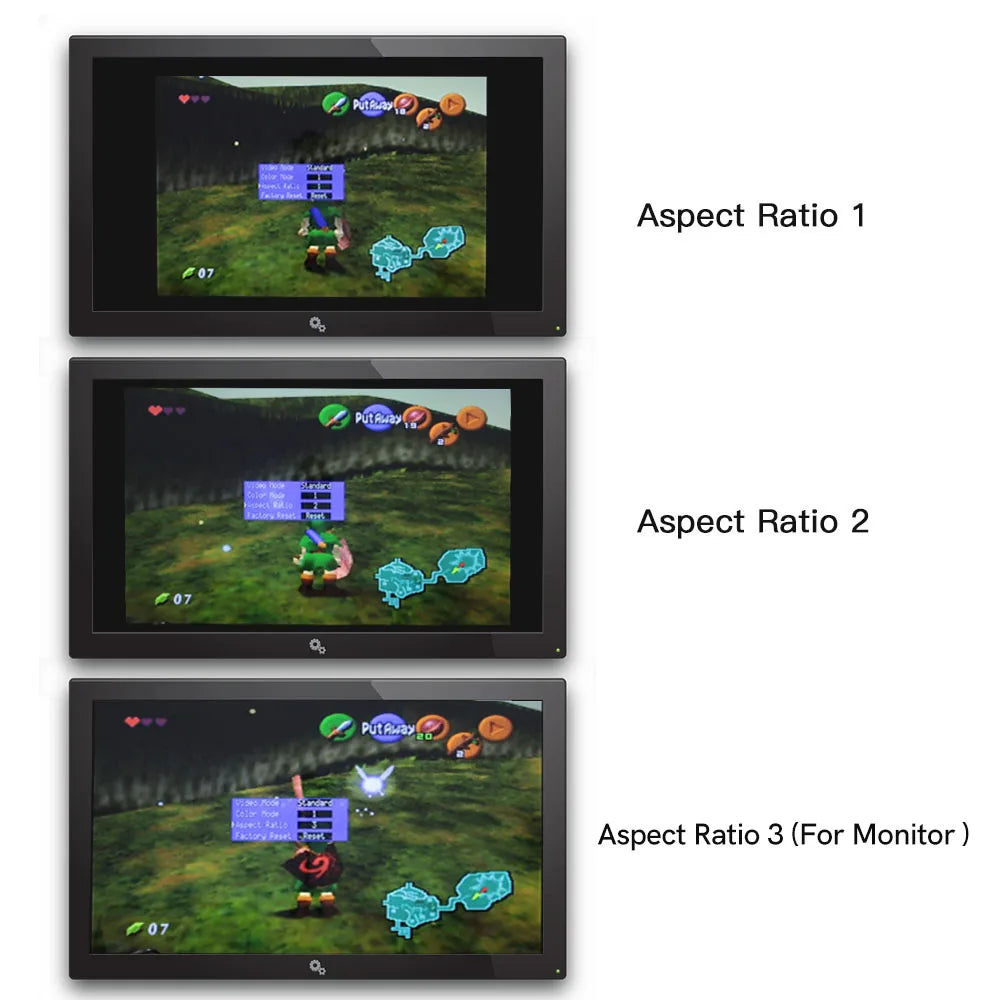

• Built in 3 TV Aspect Ratio.

•  8 color modes.

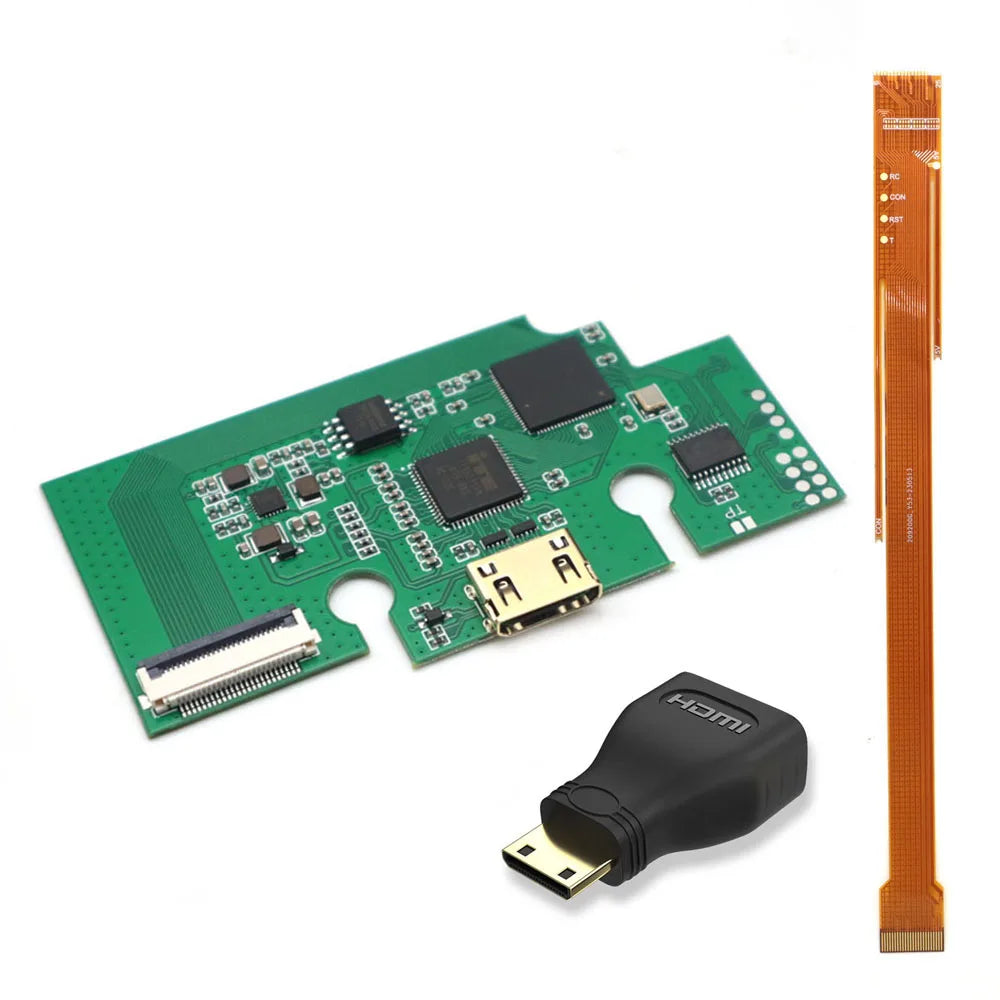

Package Incude

• 1x PCB board

• 1x Ribbon cable

• 1x Mini HDMI adapter

Installation Steps

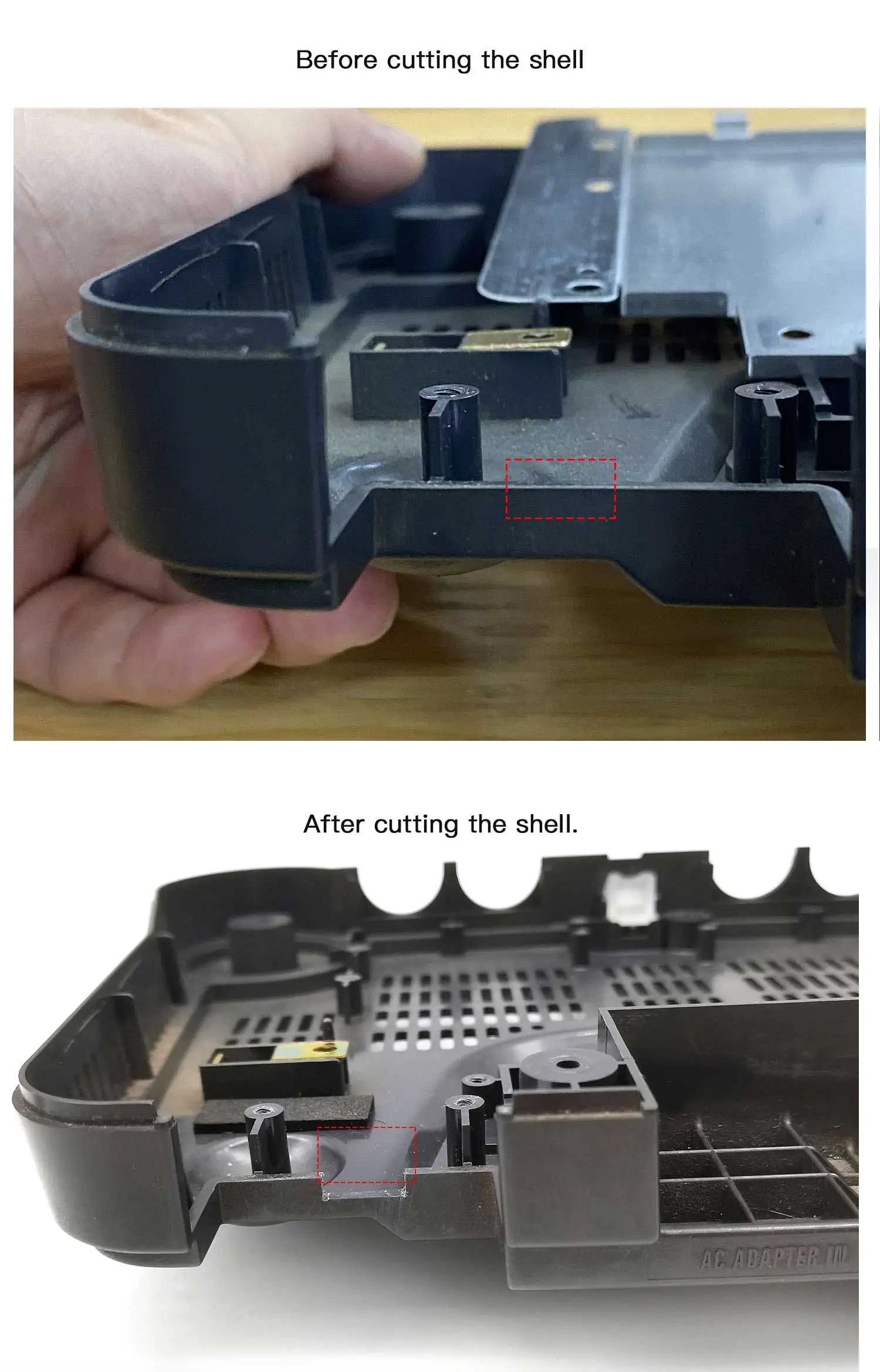

Cut the shell with a HDMI socket square

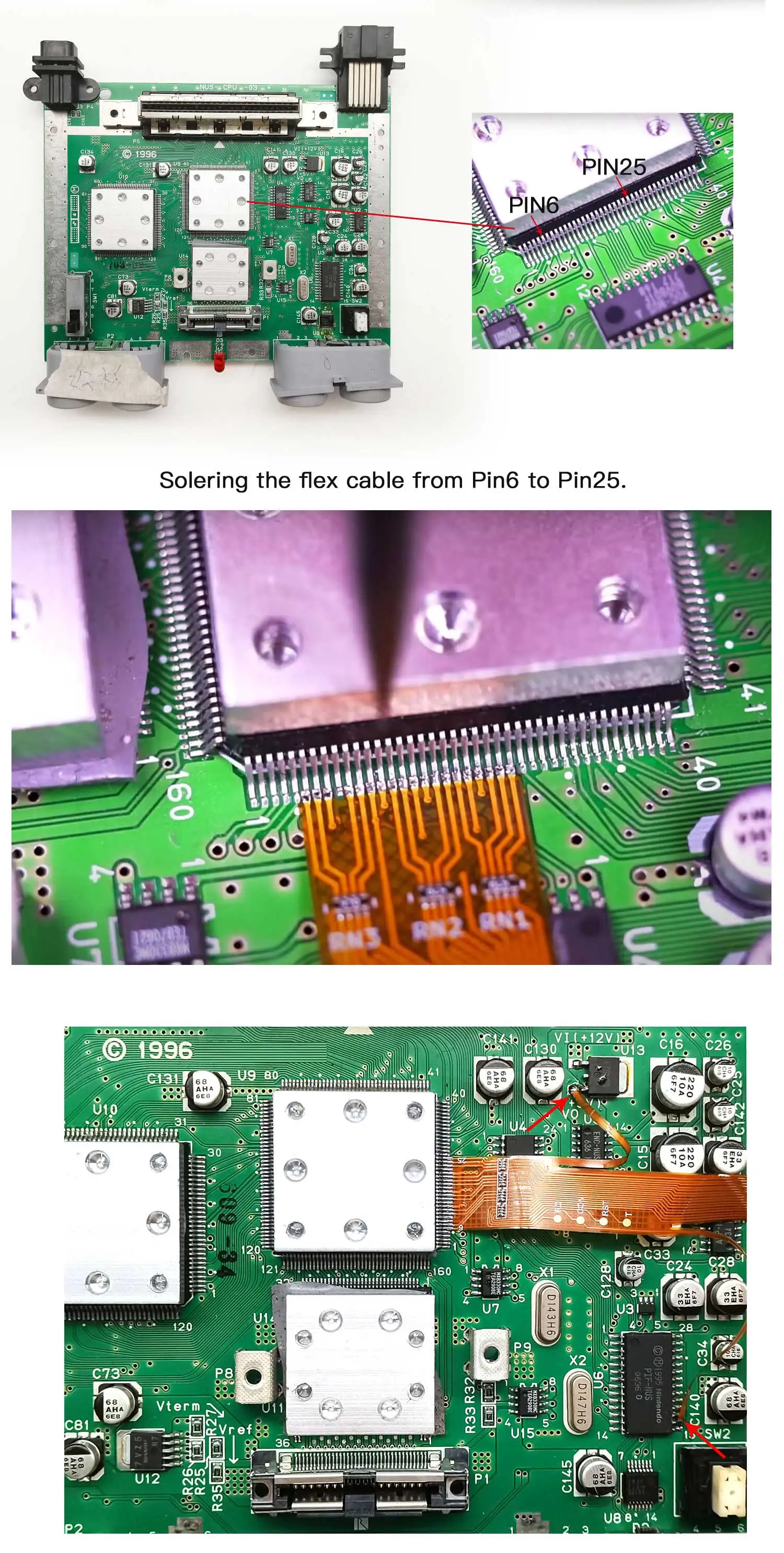

• Align the FPC flex cable to pin6.

• Solder the flex cable to connect with the pins one by one.

• Finshed solding, use a multimeter to confirm there is no continuity between adjacent pins. When connect the 2 pins, the multimeter will not make sounds, it means you make it susccessful.If a direct short is found, clear the bridge and check again.

• Make sure the connector is free from any particals or other contamination.

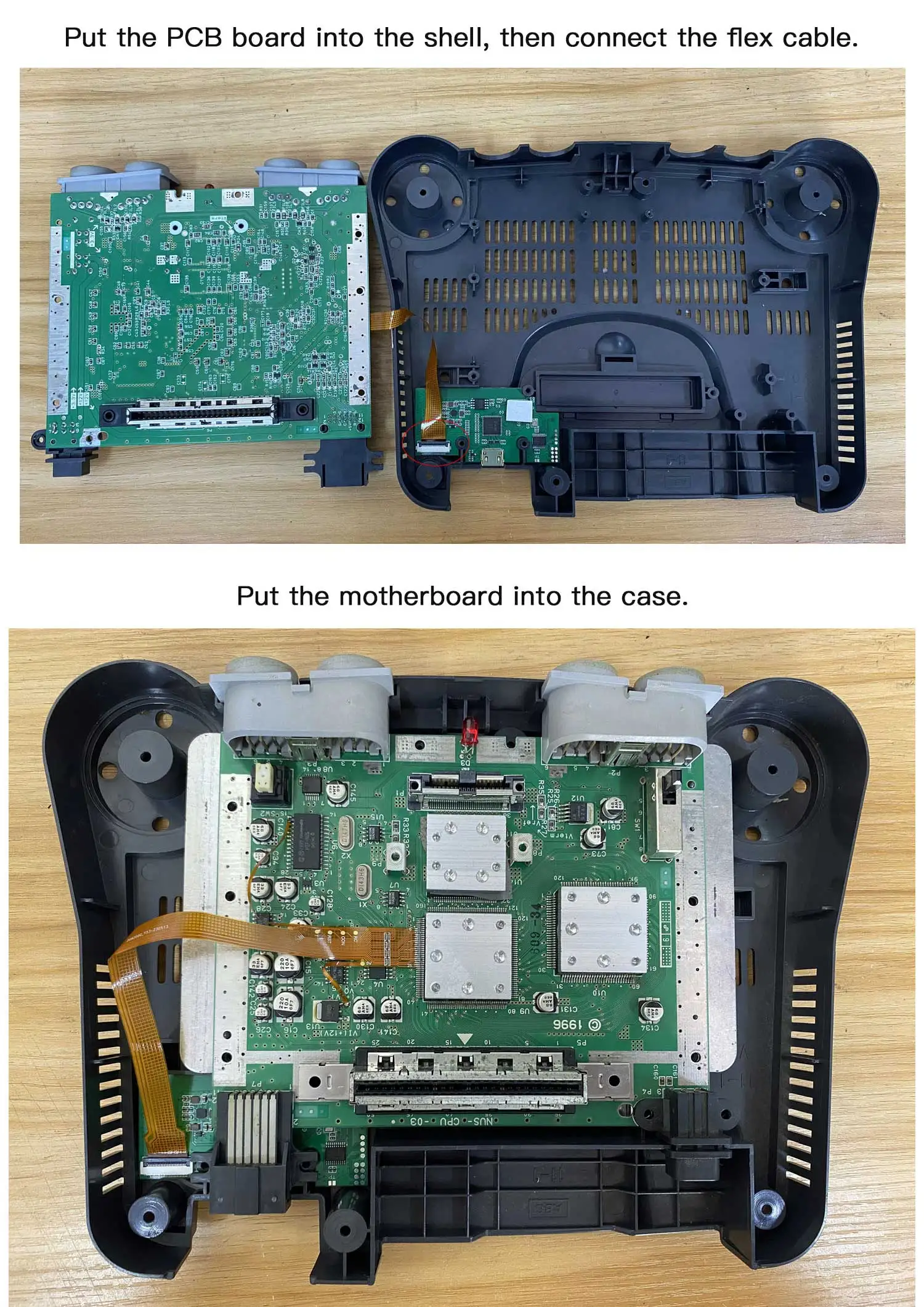

• Make sure the flex cable is fully inserted and perpendicular to the connector before closing the locking tab. Pay extra attention that the flex cable is properly aligned and centered when inserting. (There are guides inside the connector, which are more narrow than the space between the locking tab)

• Insert game cart, mini hdmi cable, jumper pak, and controller into port 1. Double check jumper pak is correctly oriented. Verify there is no short between 5V and GND before moving on.

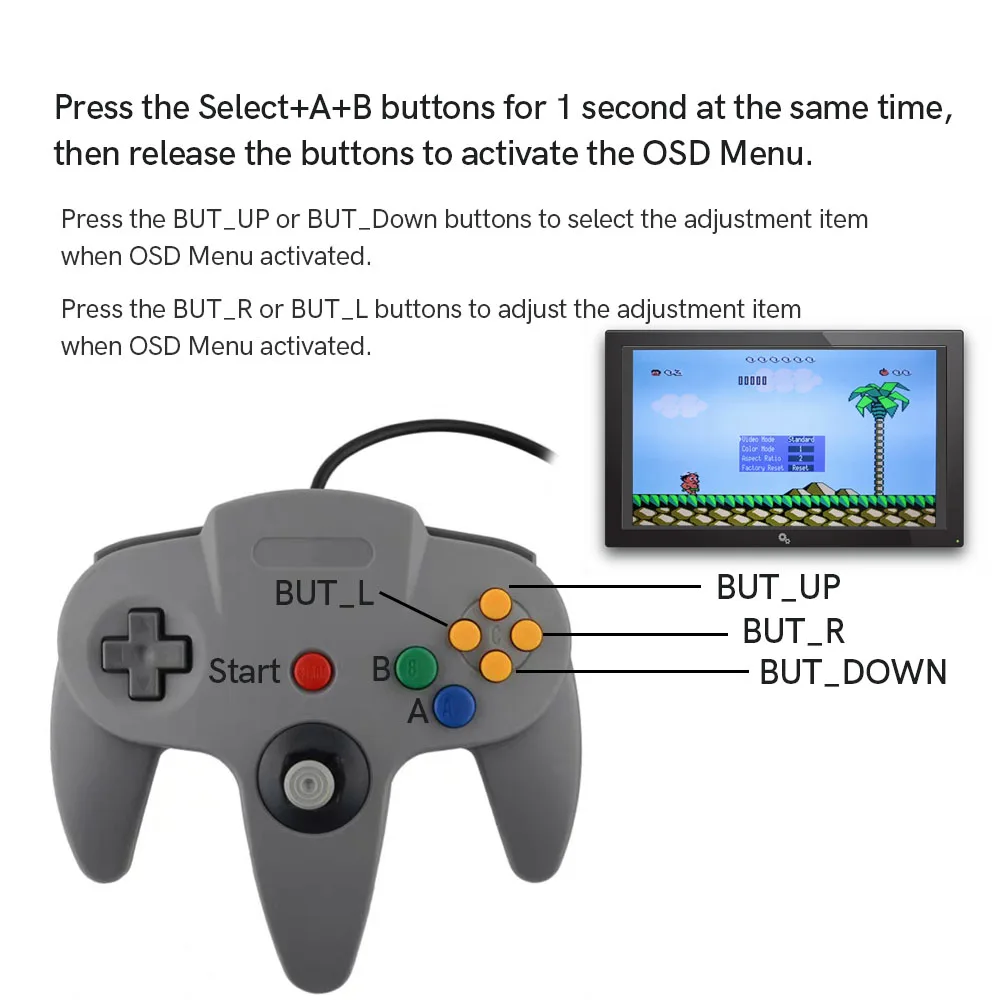

• Insert N64 power supply then power on the console. Do not leave the console powered on for more than 1 minutes since the heatsink is not installed. Verify you get an image on the screen, press SELECT + A+ B at the same time for 1 second then release the buttons to active the OSD menu. Confirm everything works, including sound.

• After testing, remove the game cart, power supply, controller, and jumper pak.If you do not get video and/or audio, verify the audio/video work using a composite video cable + analog audio.

1. Composite doesn't work - one of two things is wrong. Bridges on the flex cable or a poor connection with the jumper pak / game cartridge.

2. Composite does work - then the issue is related to mini hdmi to hdmi adapters or the HDMI cable line. Or try another TV just to rule out any issues.

• DO NOT continue on until video and audio are working properly.

The 2nd installation method:

N64 HDMI PCB connected with wires
