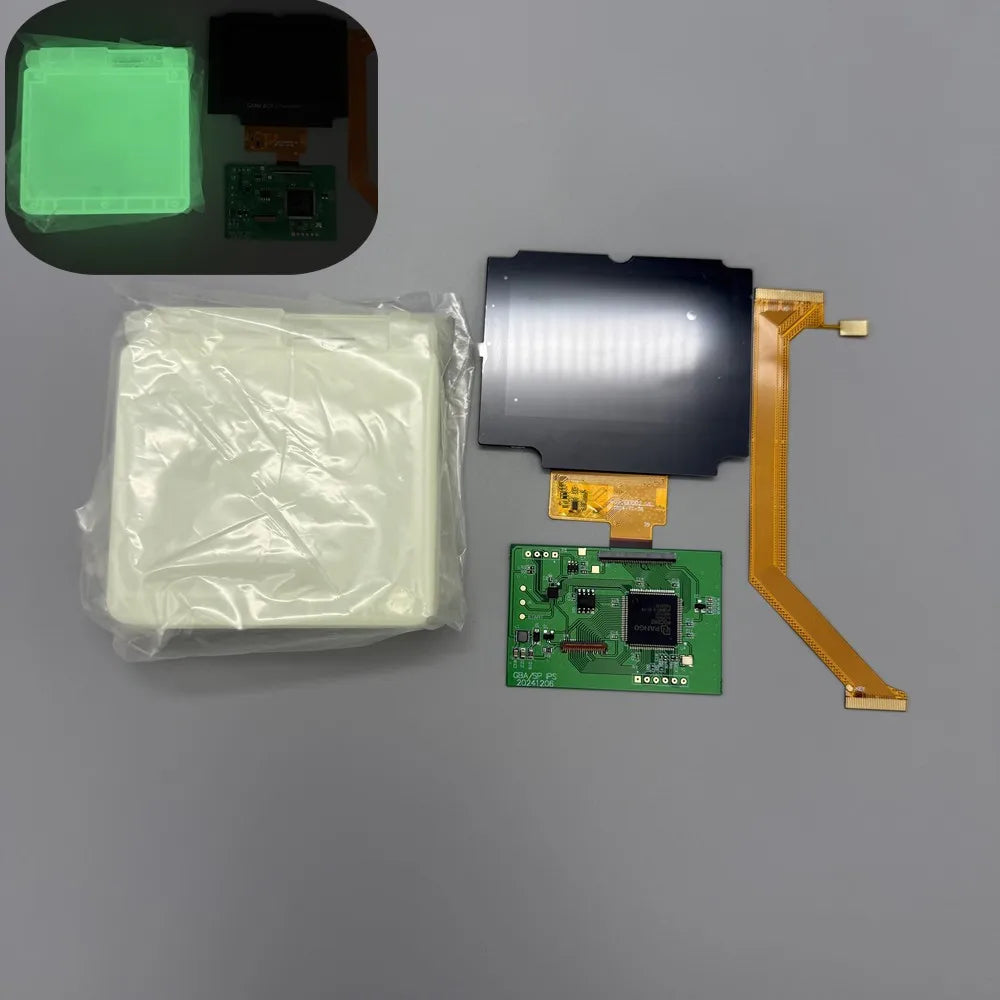

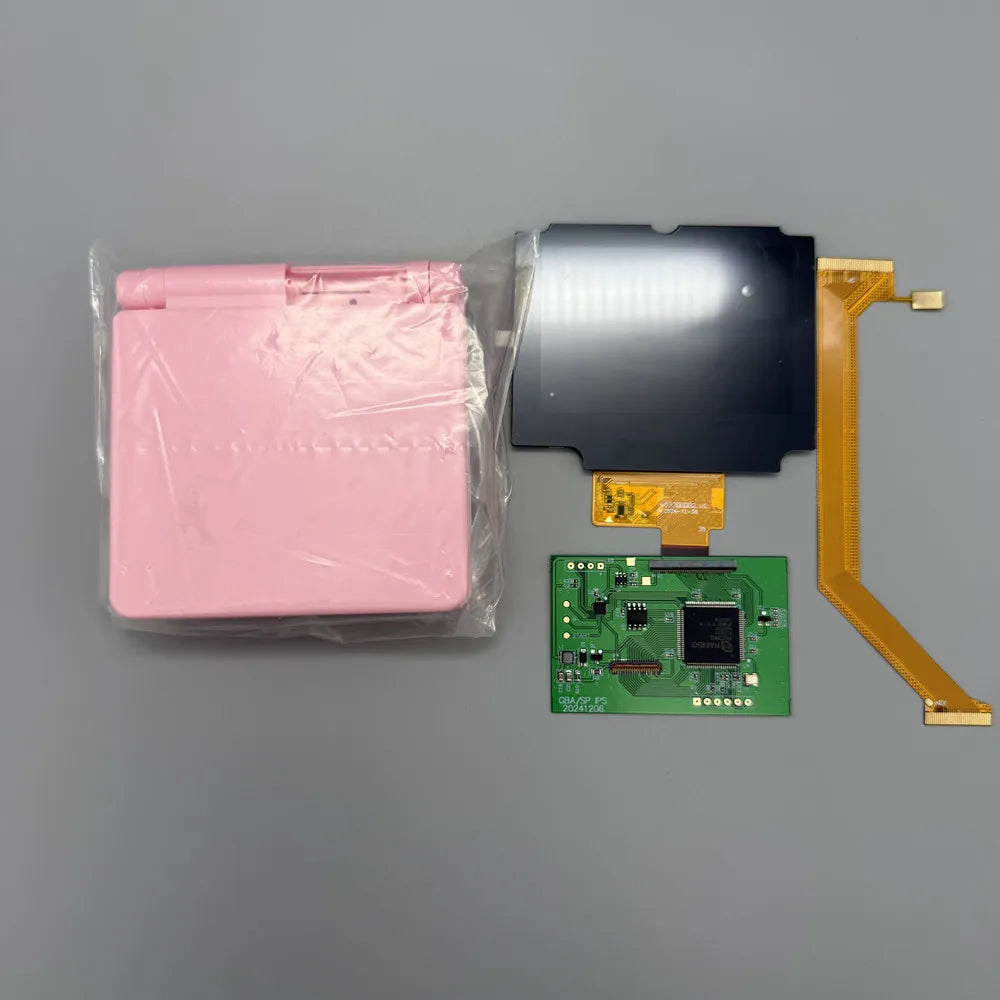

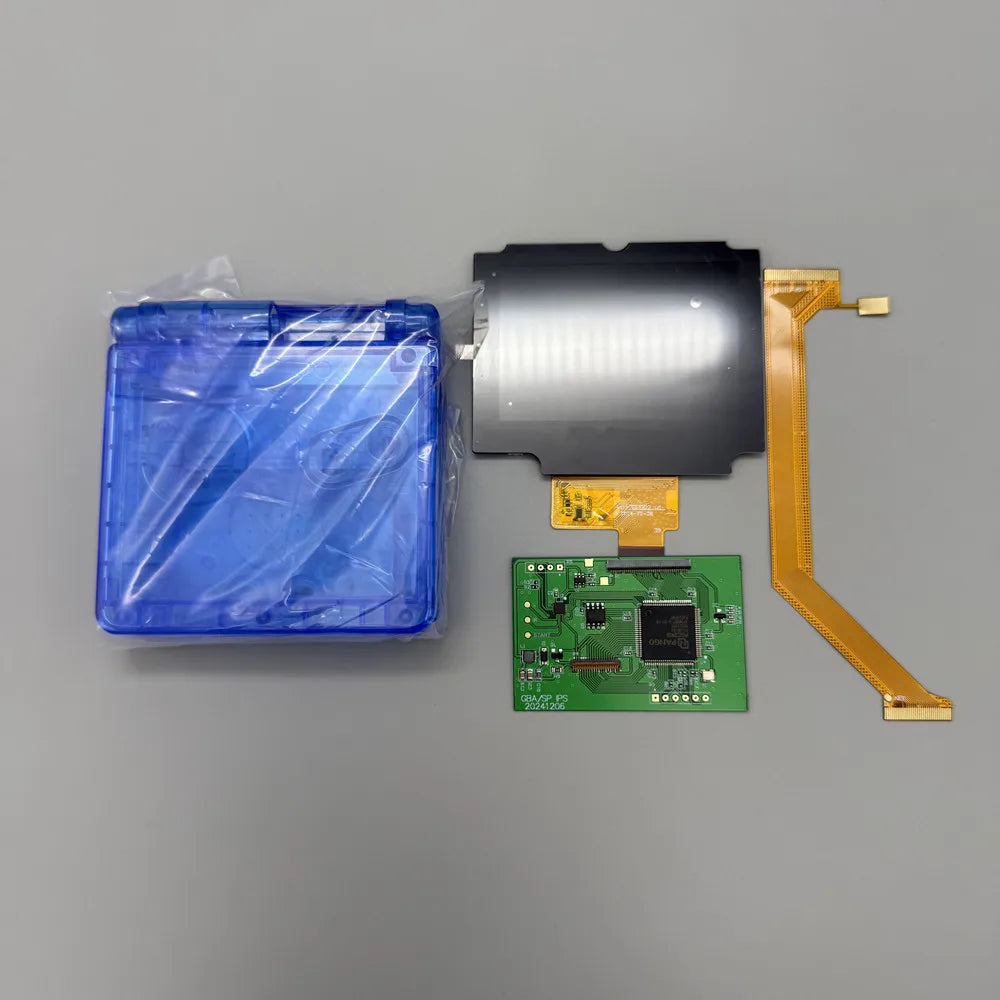

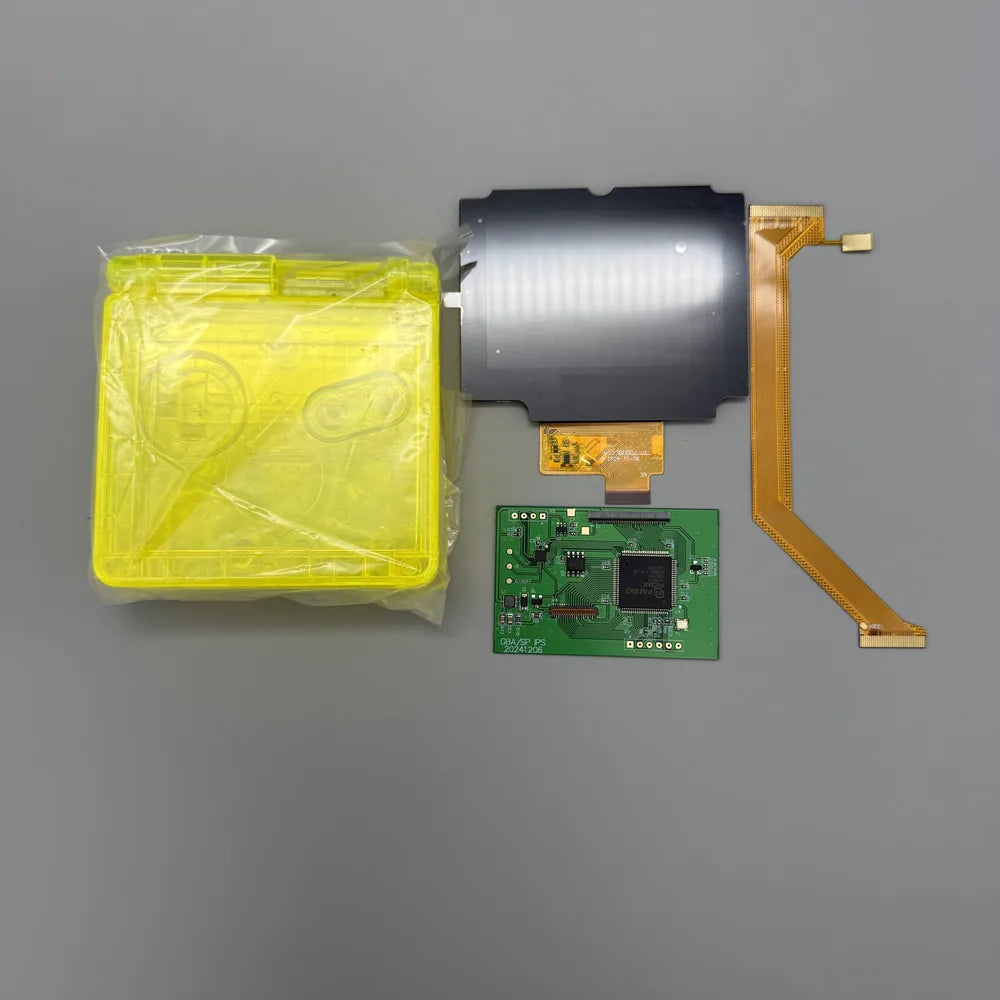

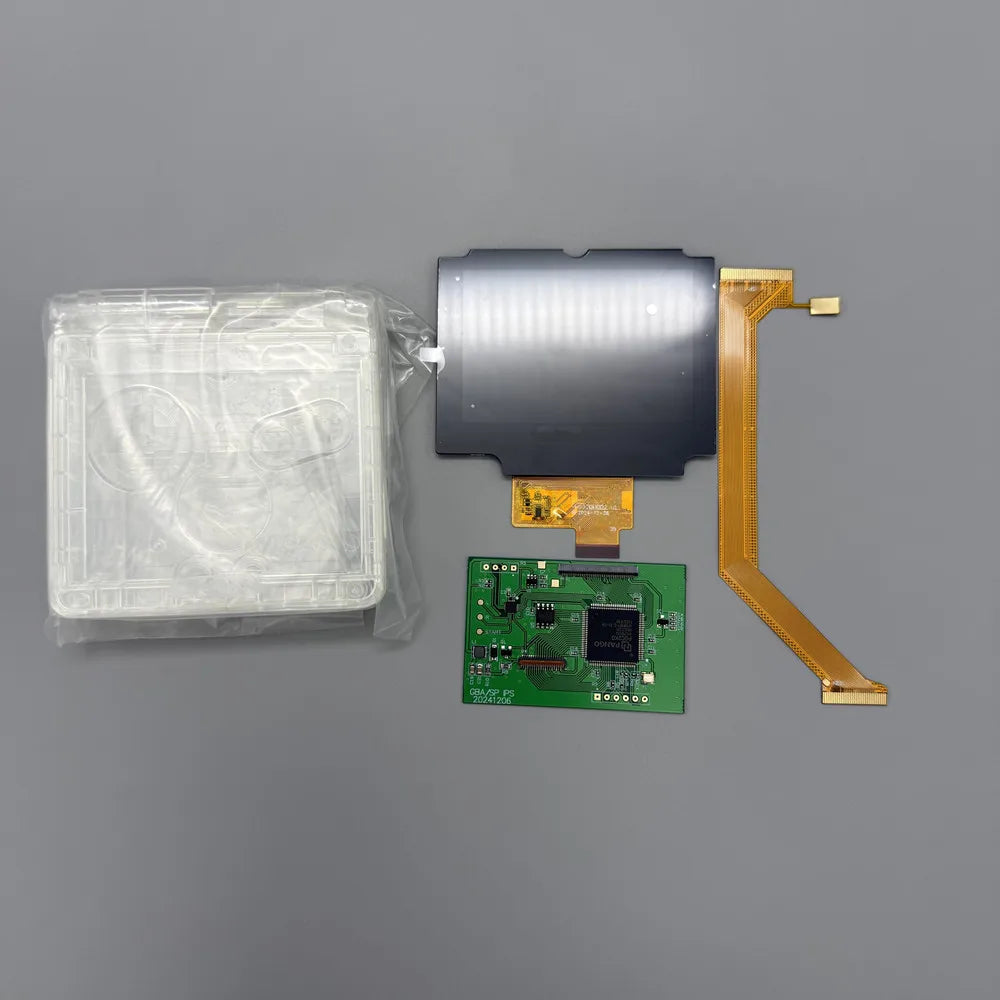

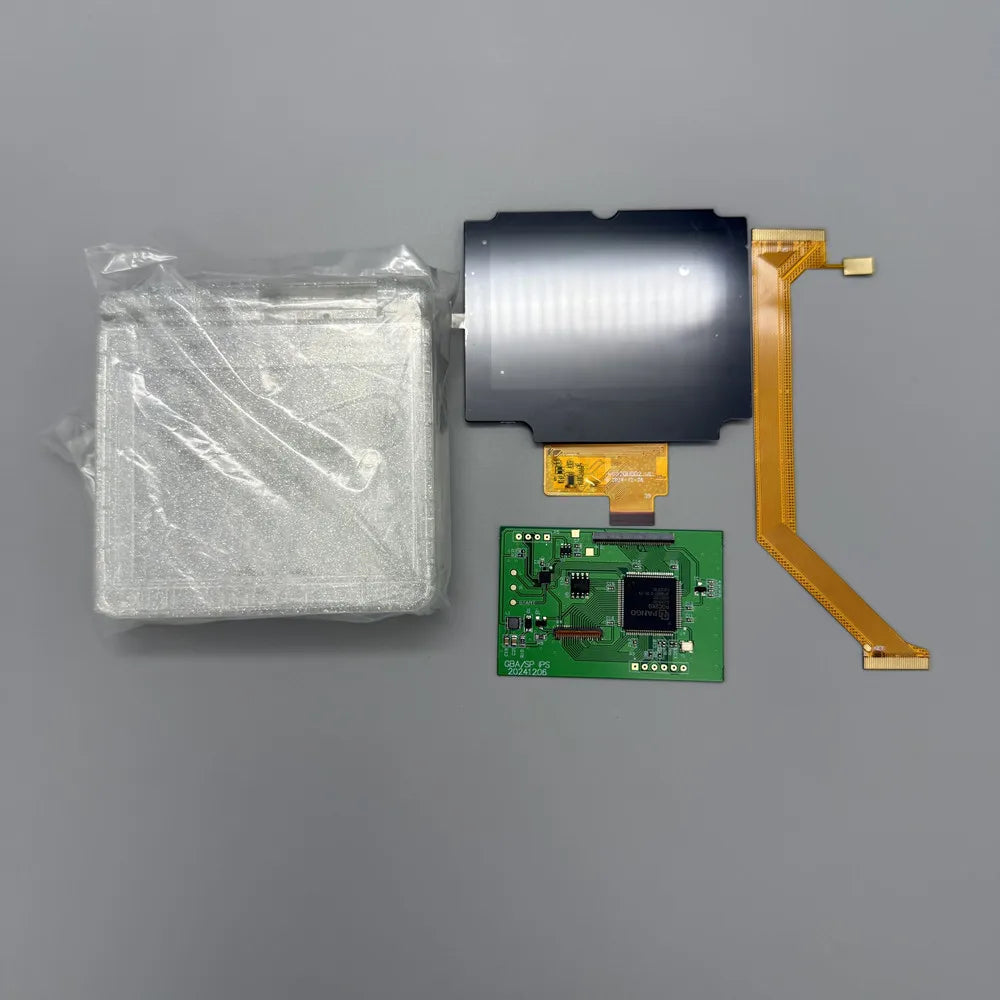

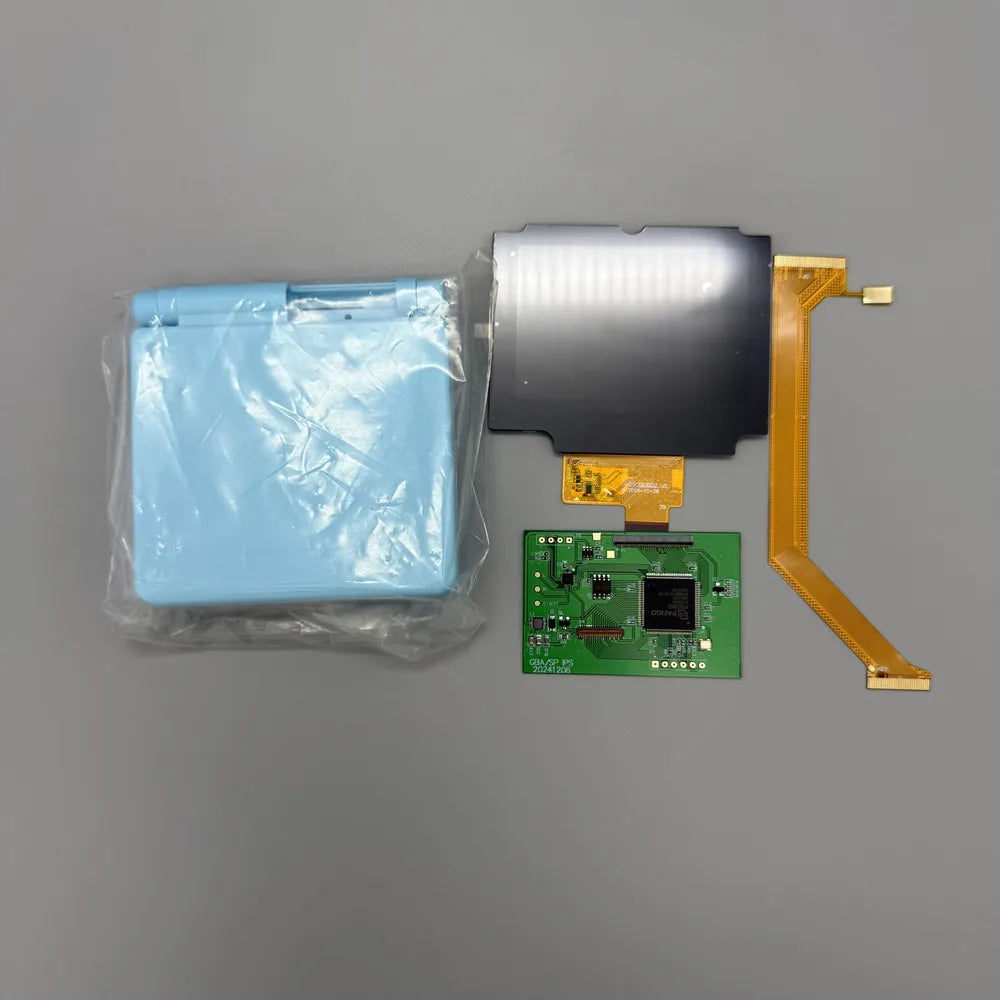

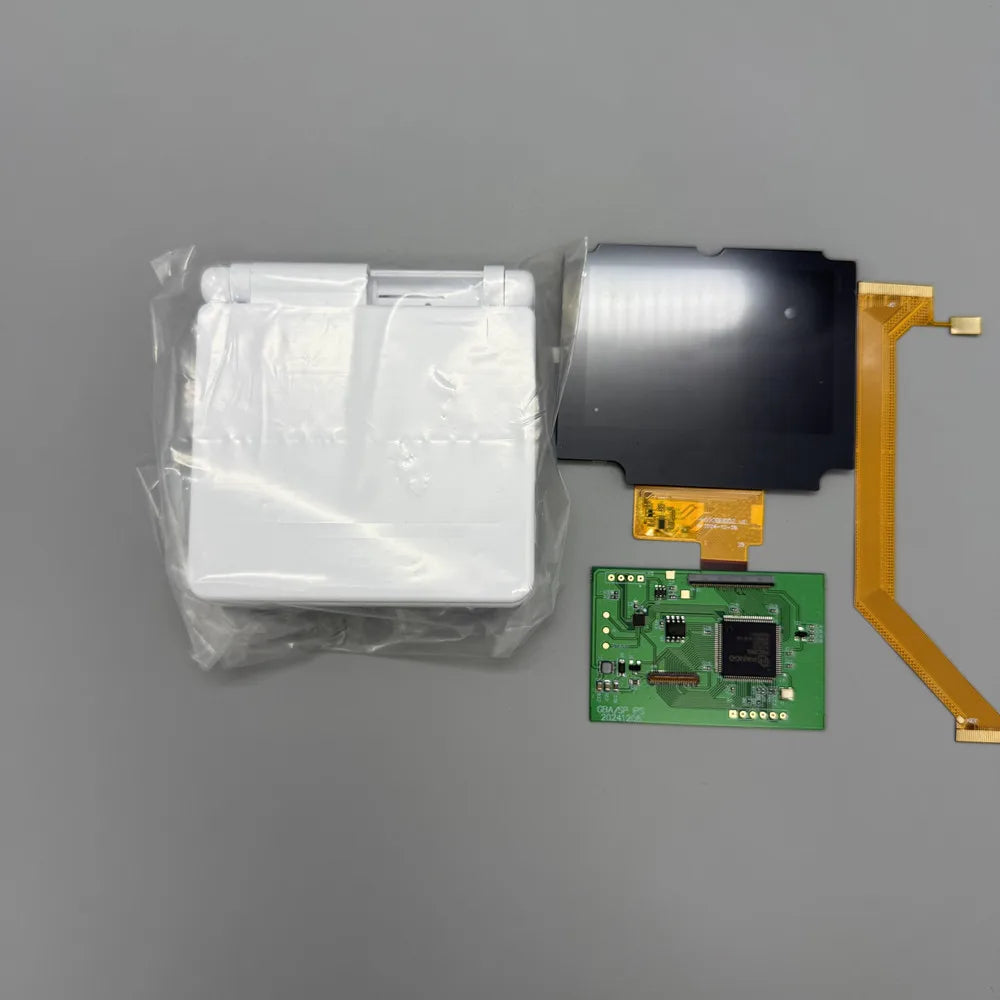

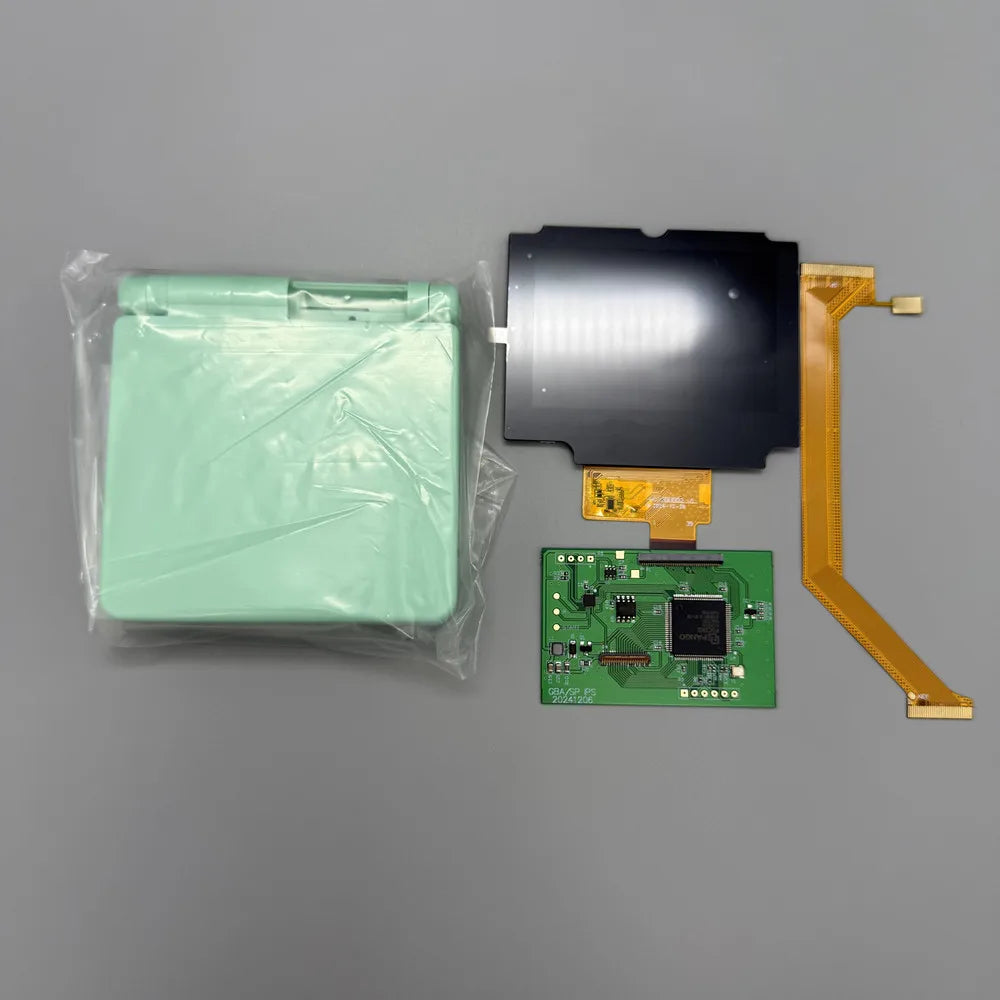

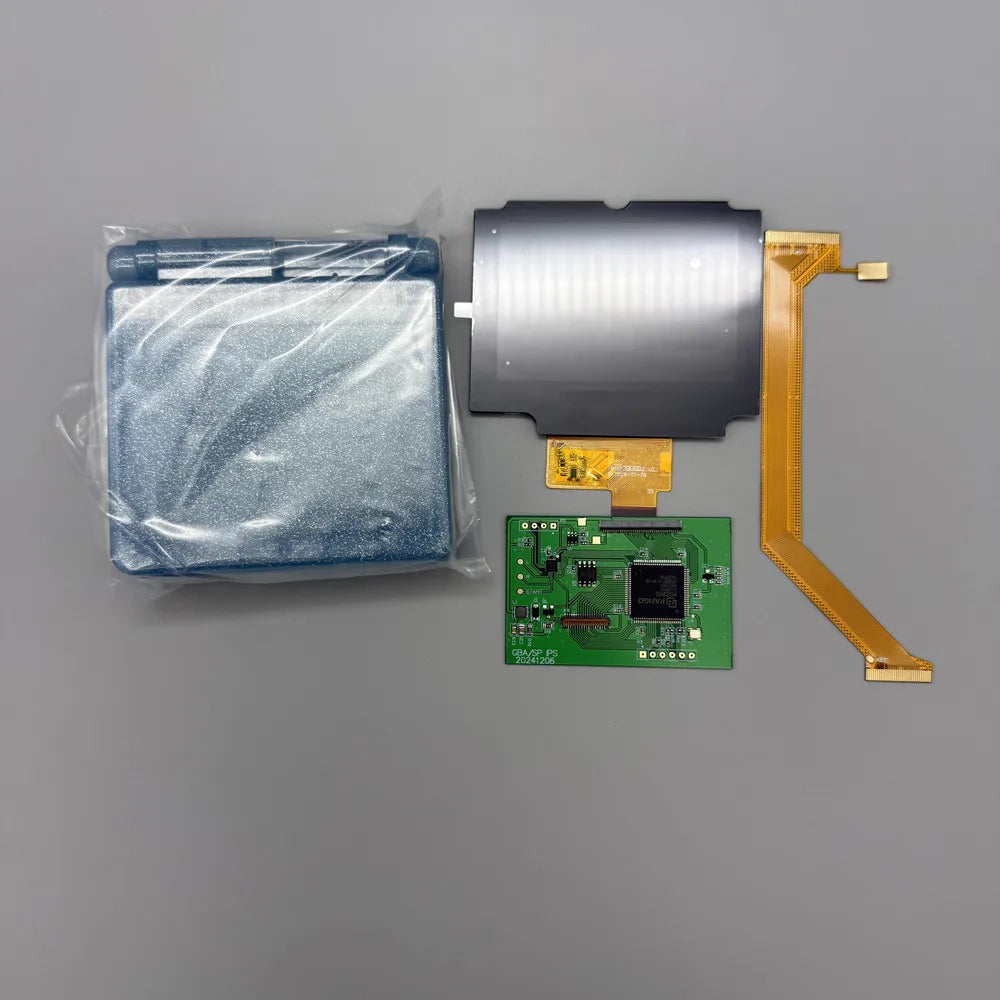

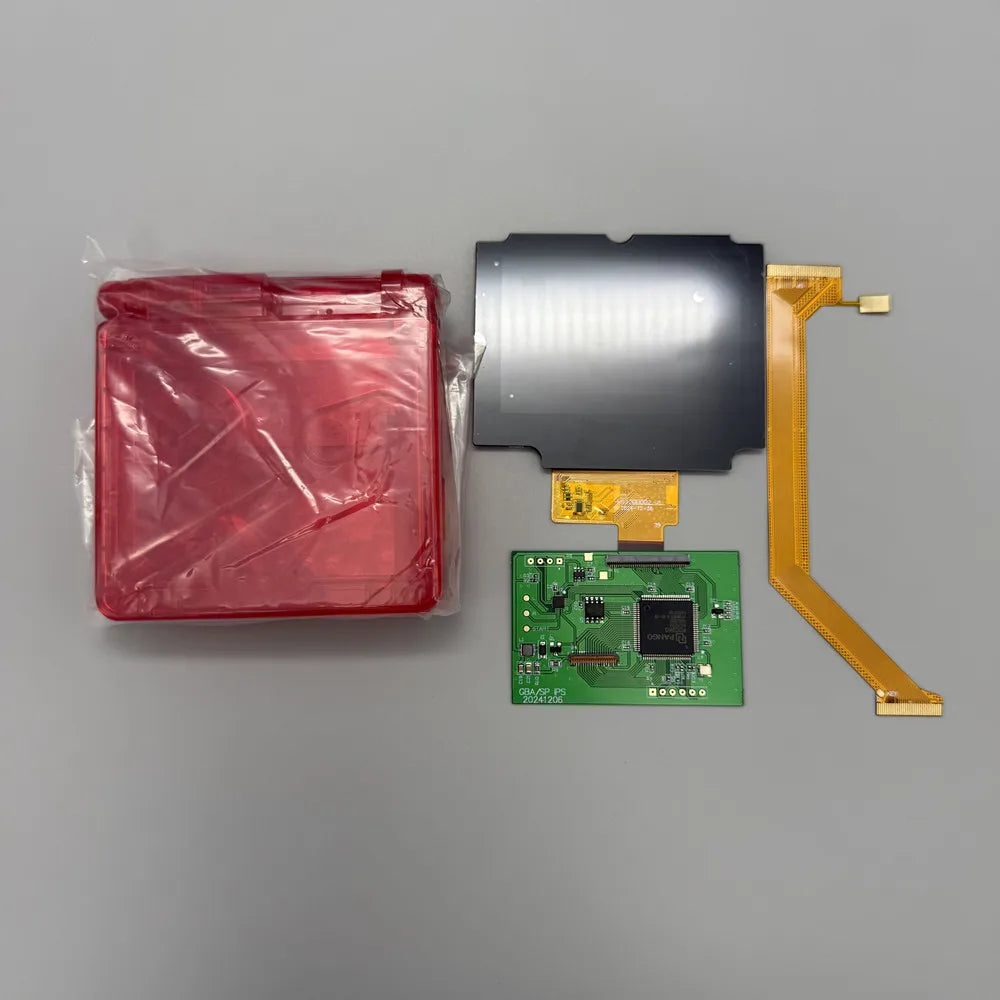

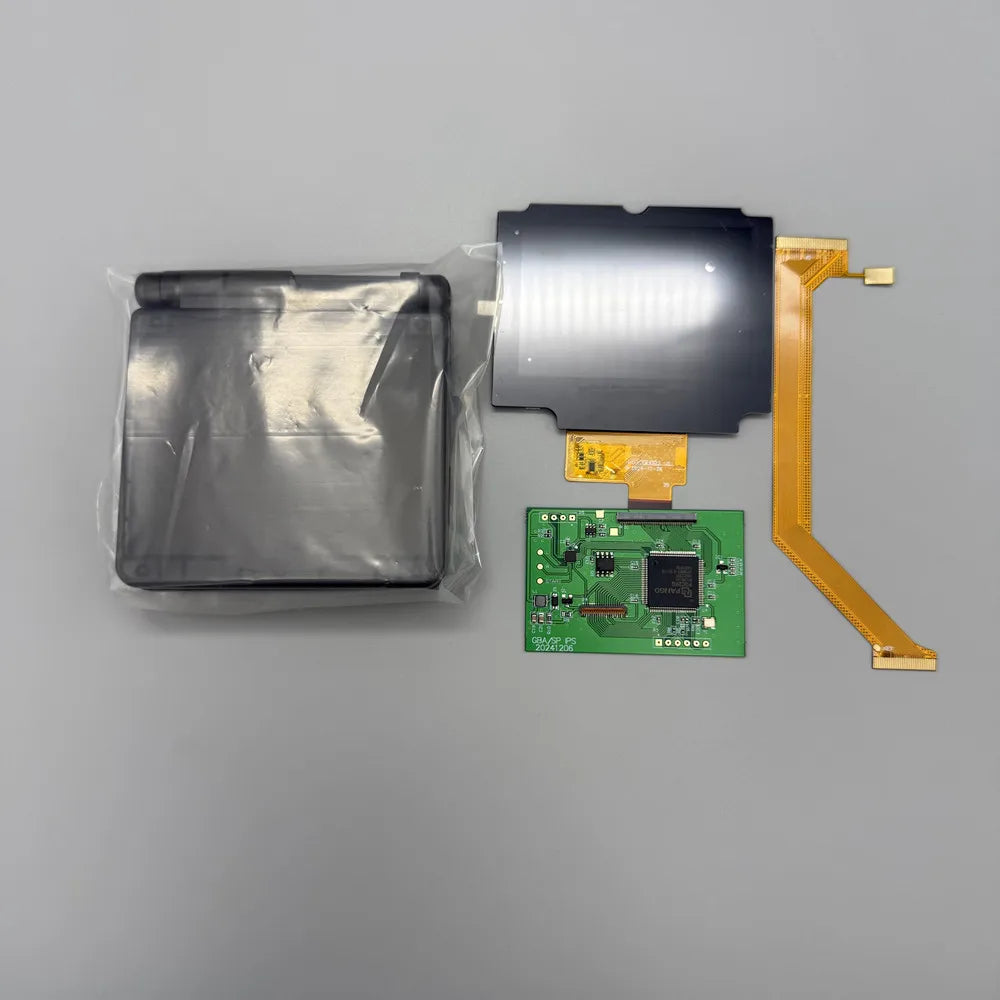

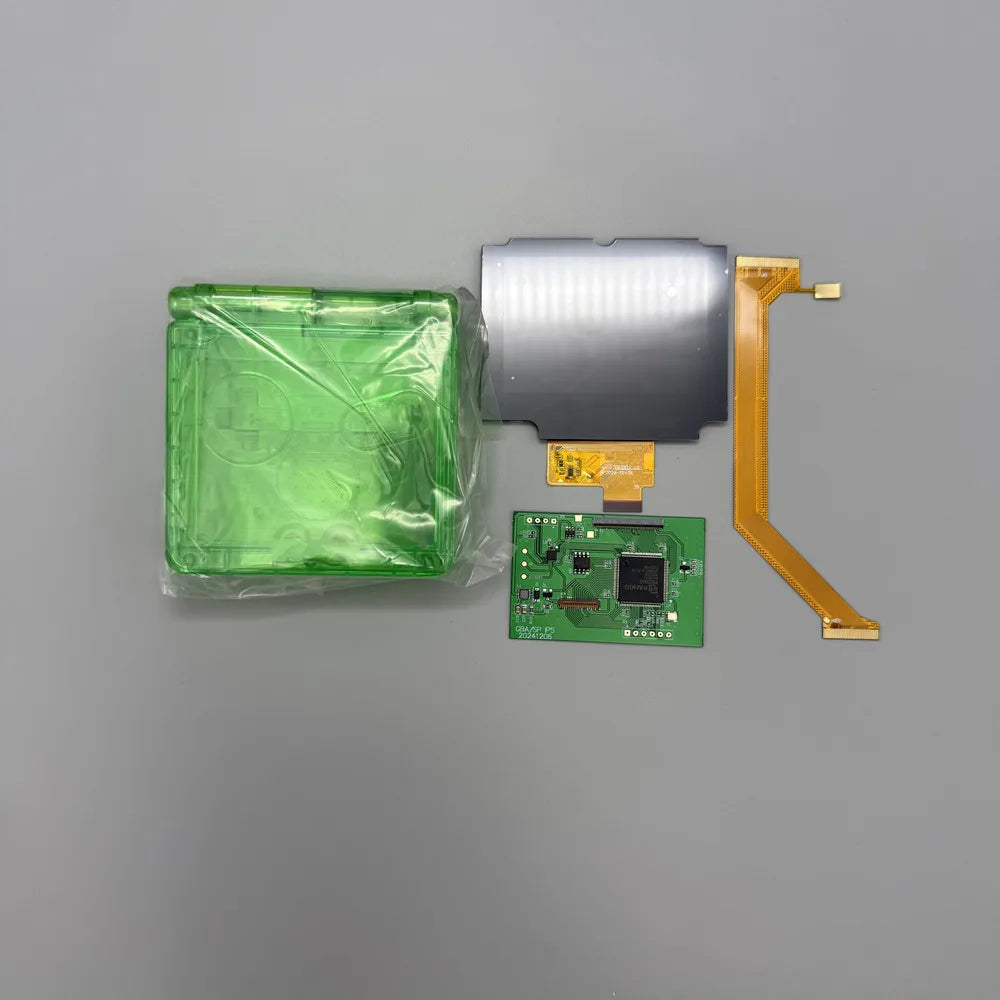

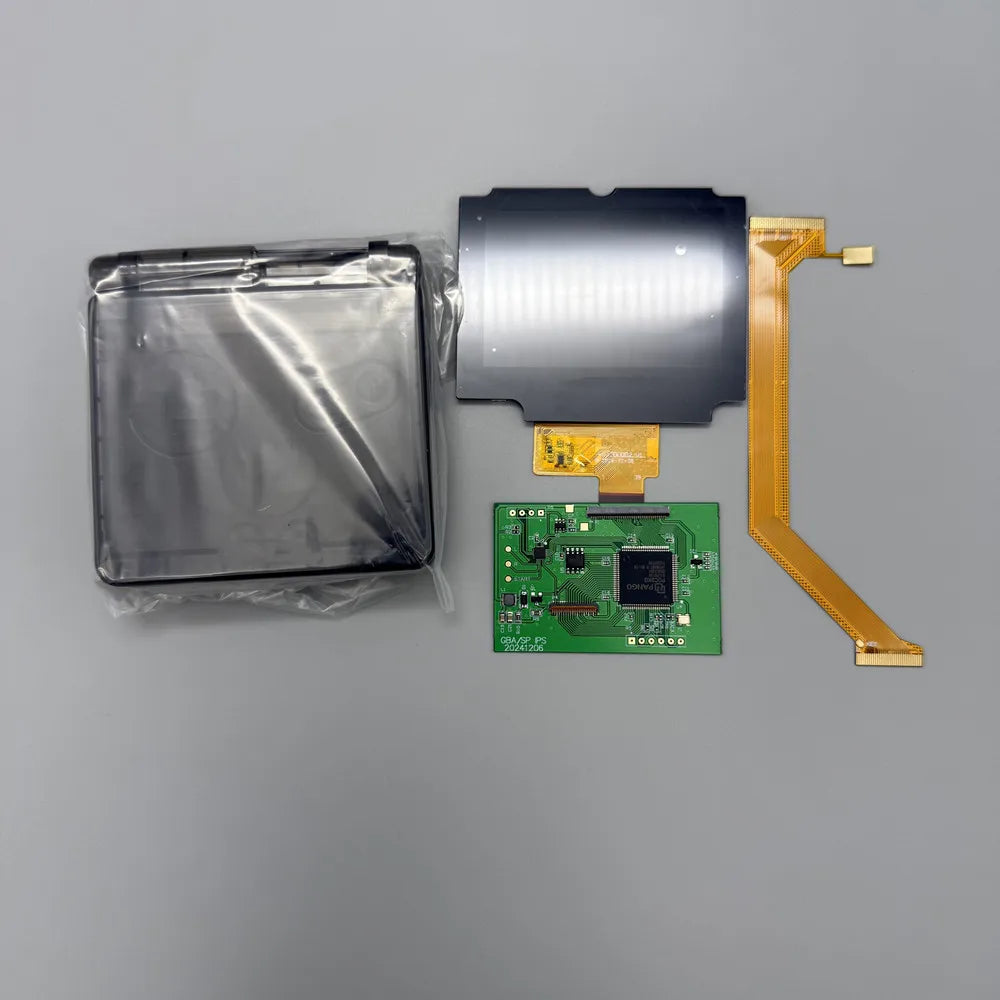

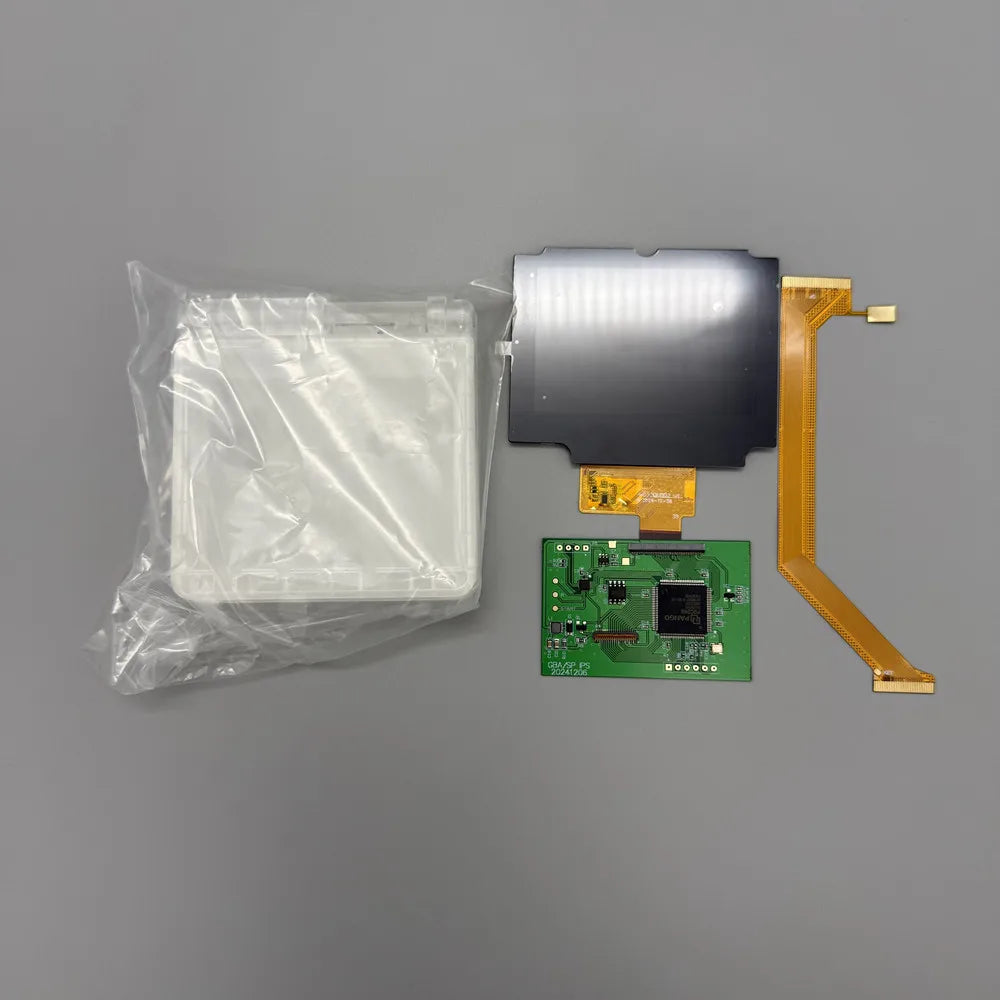

2025 GBASP IPS LCD high brightness LCD and shell kit for Gameboy advance SP

2025 GBASP IPS LCD high brightness LCD and shell kit for Gameboy advance SP

CHF 81.21
CHF 0.00 CHF 81.21
Sale Sold out
🔒 Safe Purchase & Lifetime Warrantee, Taxes included. 5-7 Day Delivery. Shipping calculated at checkout.
Stripe Trust Badge

SPECIFICATIONS

Accessories Type: Accessory Kits

Brand Name: NoEnName_Null

Compatible Brand/Model: Nintendo

Compatible Nintendo Model: GameBoy Advance SP

Electric: No

Hign-concerned Chemical: None

Model Number: SP

Origin: Mainland China

With USB: NO

Due to the high power consumption of this LCD screen, a self recovery fuse cannot be used, and replacing the self recovery fuse will prevent it from turning on. A motherboard with a blown fuse can be powered on by directly short circuiting the fuse.

This is a LCD screen, not a console! If you don't have a motherboard, you can't assemble it into a console.

Glass lens with logo

Please do not pull the cable of the LCD screen. Slight pulling may damage the LCD screen. It will cause the LCD to display horizontal and vertical lines.Don't squeeze the LCD screen. Don't wipe the LCD screen with a wet towel. Squeezing the LCD frame and back cover will lead to uneven backlight display, light spot and dark spot.

Product features:

1. IPS LCD. Display size, 3.0 inches,640 * 960 resolution.Easy to install.

2. Supports all GBASP consoles

3. the endurance is about 3 hours. Using different ink cartridges, the power consumption will be different

4. Support point-to-point display. Black and white display. Short press the touch or key to adjust the brightness, long press the touch or key to switch the display style.

5. Support brightness adjustment memory and display style memory, and there is no need to reset when starting up.

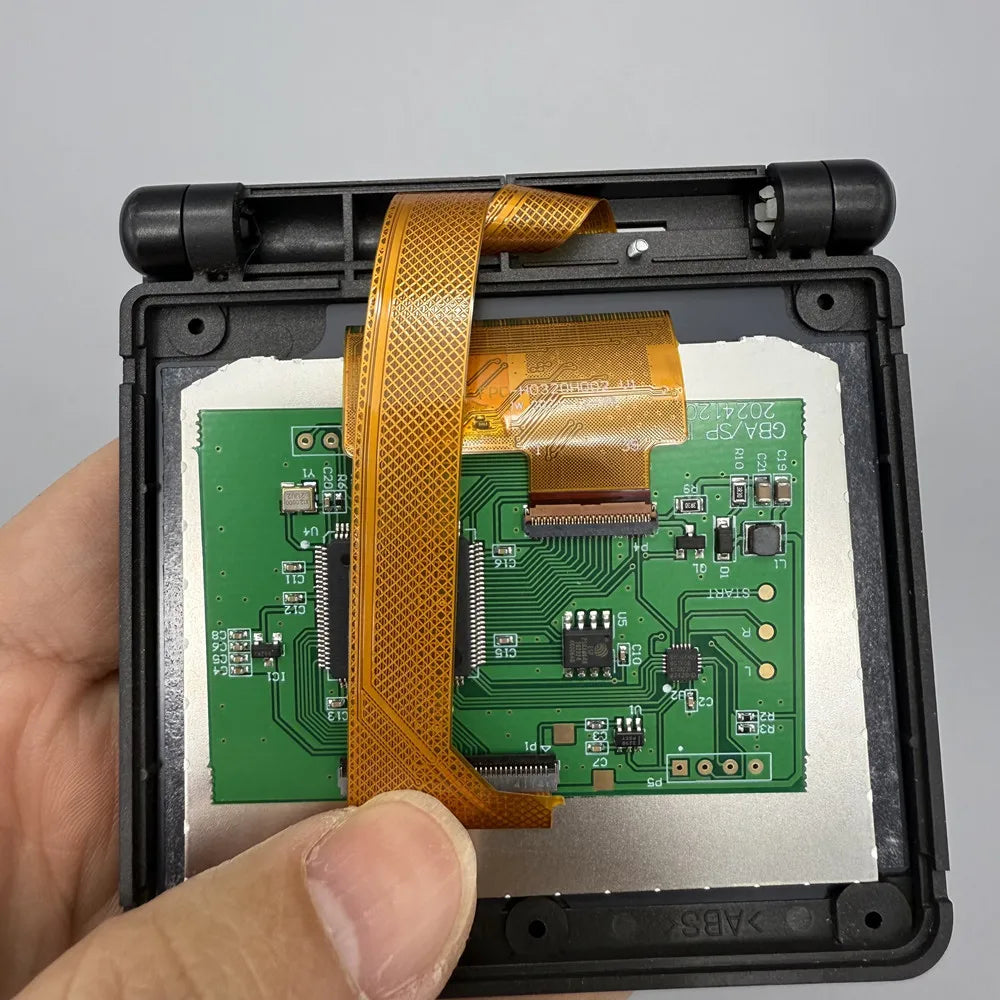

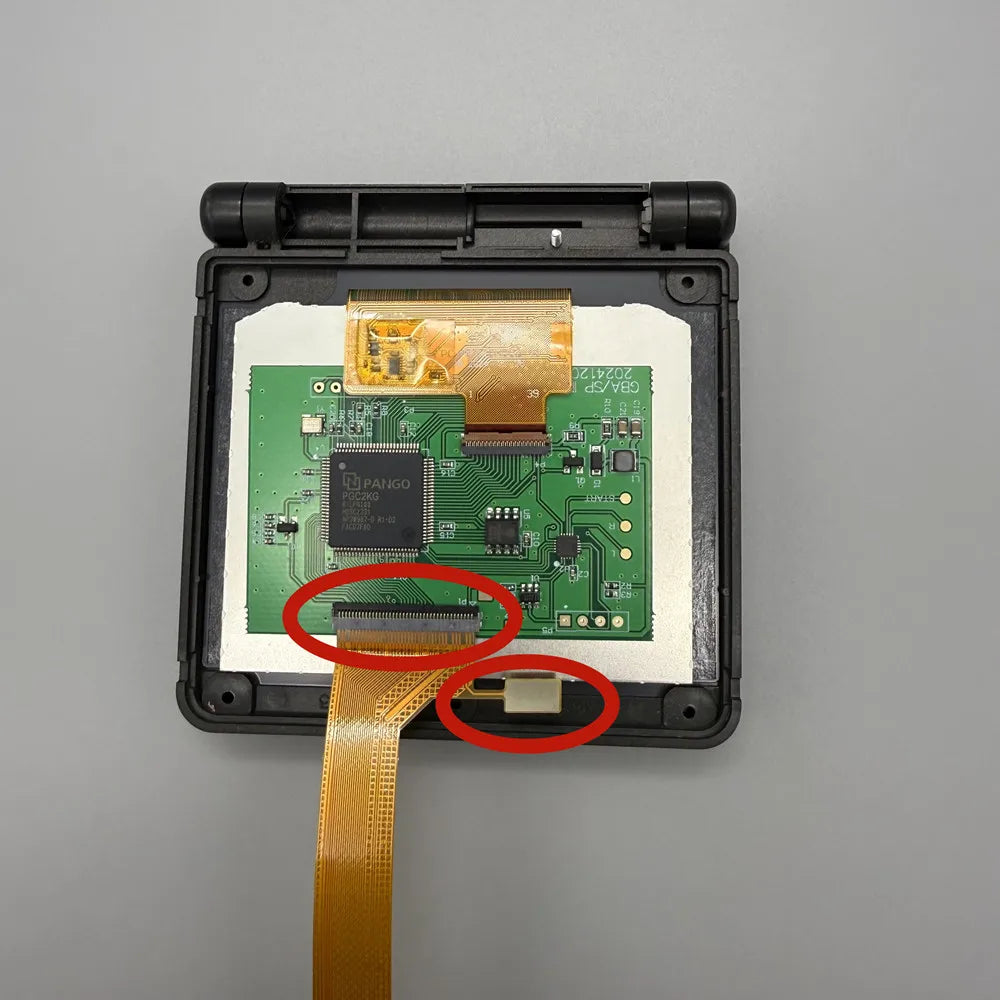

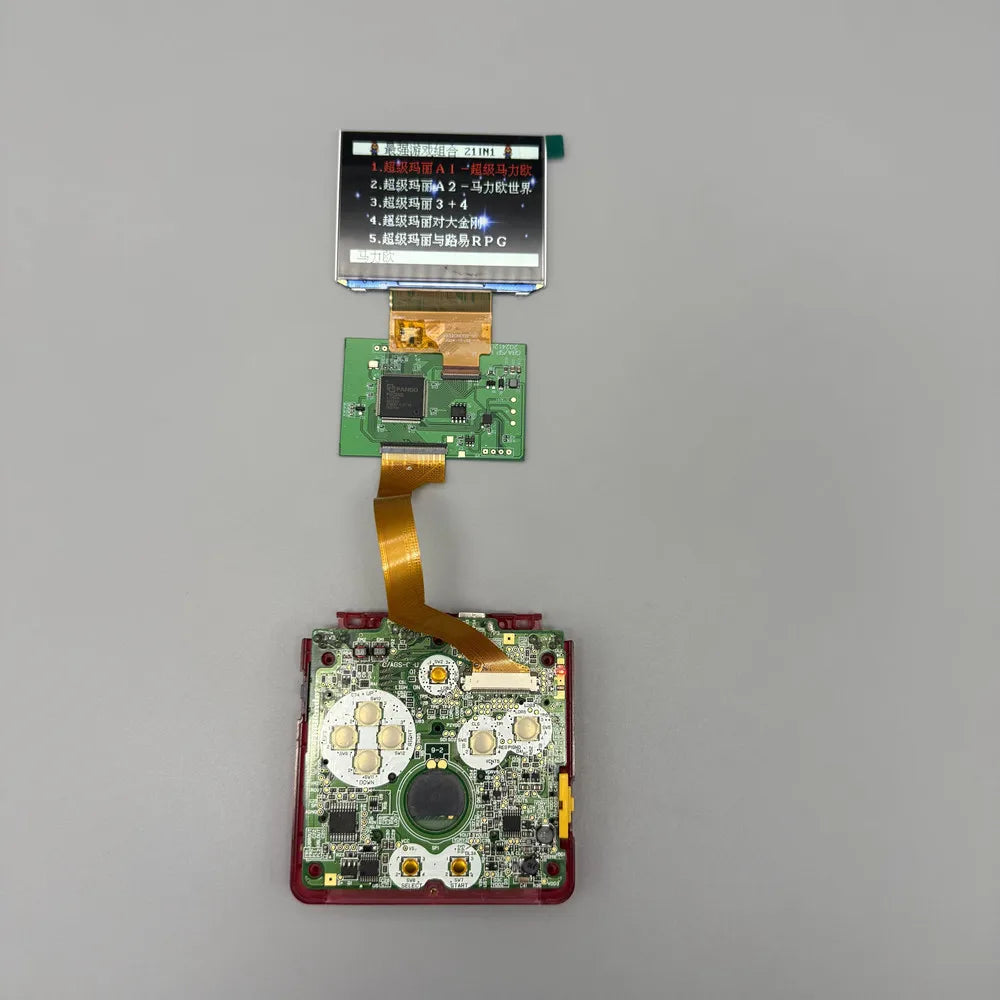

Please refer to the image below for the installation tutorial.

GBASP does not recommend using touch control on the ribbon cable to adjust brightness. You can cut off the touch sensor to avoid accidental touch.

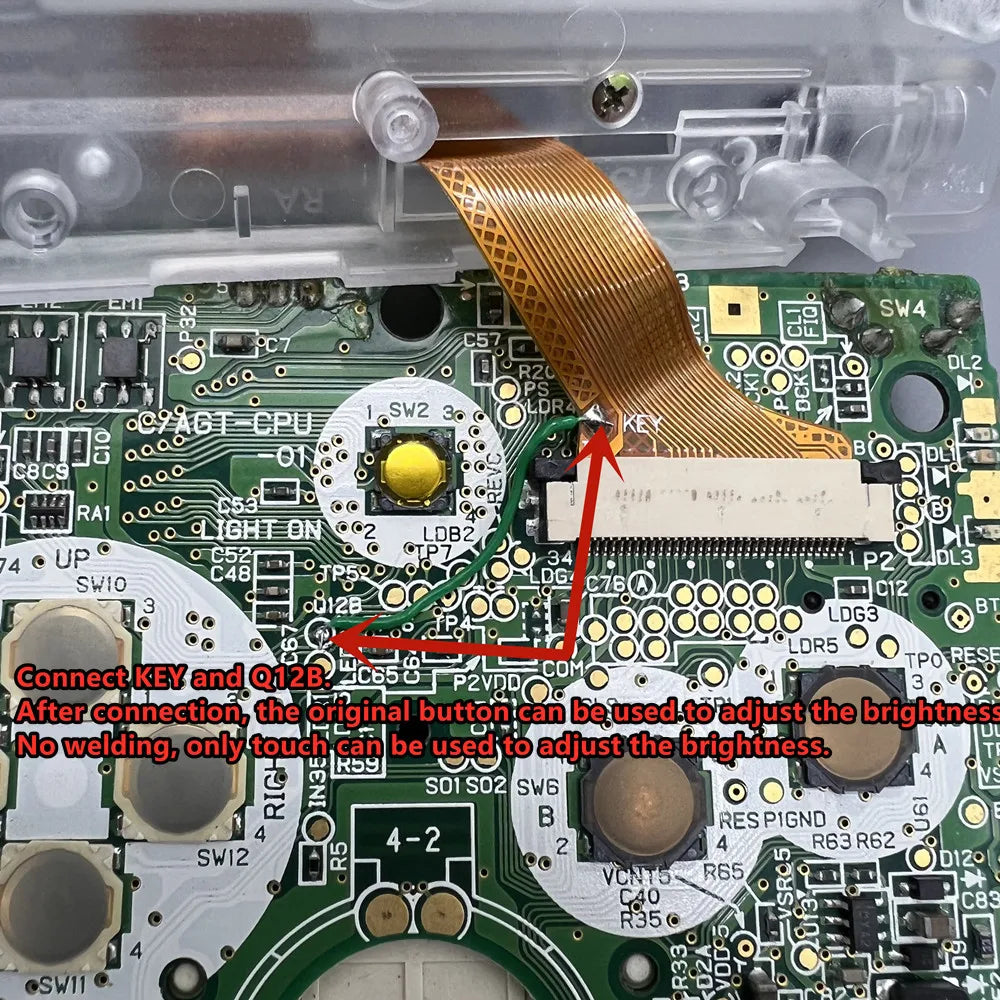

By soldering a wire from Q12B on the GBASP motherboard to the ribbon cable, the LCD screen can be adjusted using the original buttons.

For non full lamination, it is necessary to open the console as shown in the picture to align and attach the lens. For beginners, it is difficult, so it is recommended to purchase a full lamination screen.

The fully laminated screen mirror and LCD screen are already integrated.

Increasing the R9 resistor on the circuit board can reduce backlight and lower power consumption. Use 0805 patch resistor

The first batch of circuit boards used 3R3, with very bright backlight brightness. Suggest using 30R.
