SPECIFICATIONS

Accessories Type: Accessory Kits

Brand Name: NoEnName_Null

Compatible Brand/Model: Nintendo

Compatible Nintendo Model: GameBoy Advance

Electric: No

Hign-concerned Chemical: None

Model Number: GBA

Origin: Mainland China

With USB: no

Due to the high power consumption of this LCD screen, a self recovery fuse cannot be used, and replacing the self recovery fuse will prevent it from turning on. A motherboard with a blown fuse can be powered on by directly short circuiting the fuse.

This screen does not support EDGB flashcards The instantaneous power consumption of loading games onto EDGB flashcards is relatively high It is highly likely to cause a restart.

Tested the EZJ EZODE flashcard without any issues.

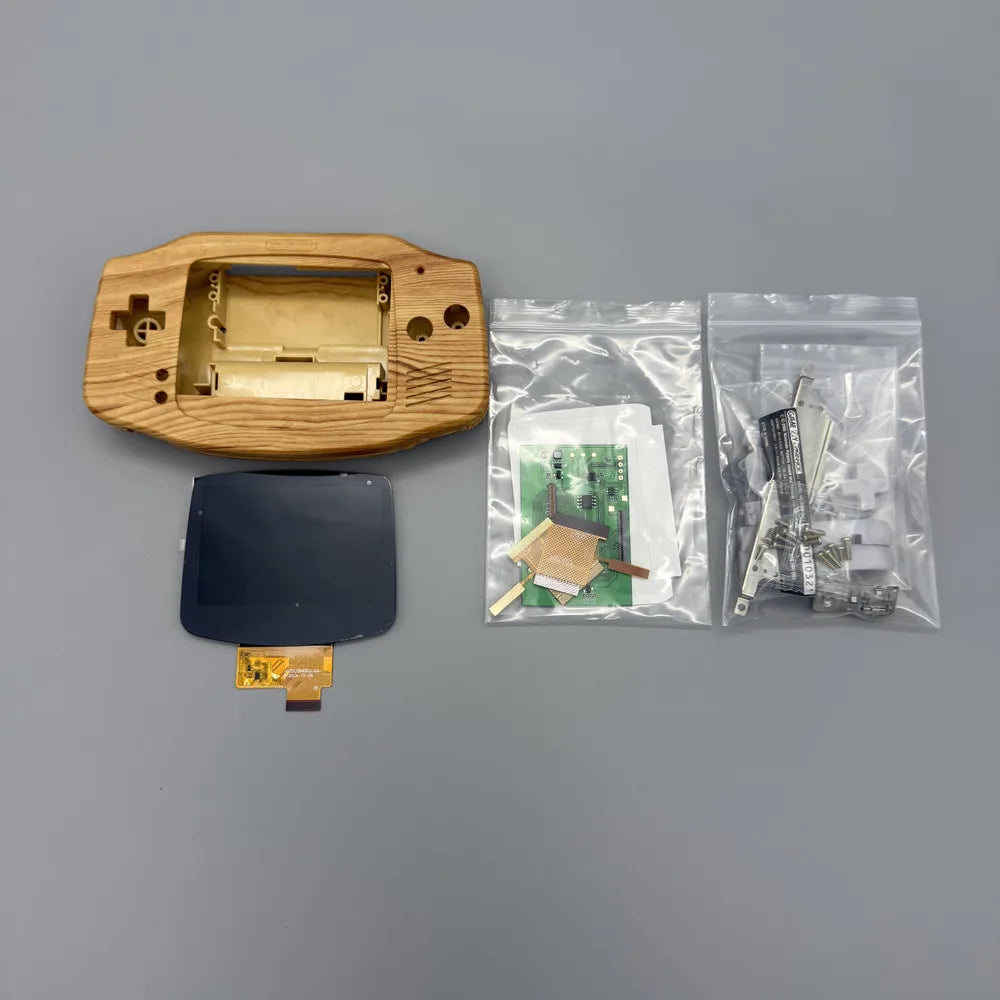

This is a LCD screen, not a console! If you don't have a motherboard, you can't assemble it into a console.

Glass lens with logo

Please do not pull the cable of the LCD screen. Slight pulling may damage the LCD screen. It will cause the LCD to display horizontal and vertical lines.Don't squeeze the LCD screen. Don't wipe the LCD screen with a wet towel. Squeezing the LCD frame and back cover will lead to uneven backlight display, light spot and dark spot.

Product features:

1. IPS LCD. 720 * 960 resolution.Easy to install.

2. Deliver 32 pin and 40 pin cables, no matter what version you are.

3. Use ordinary AA battery, the endurance is about 3 hours. Using different ink cartridges, the power consumption will be different

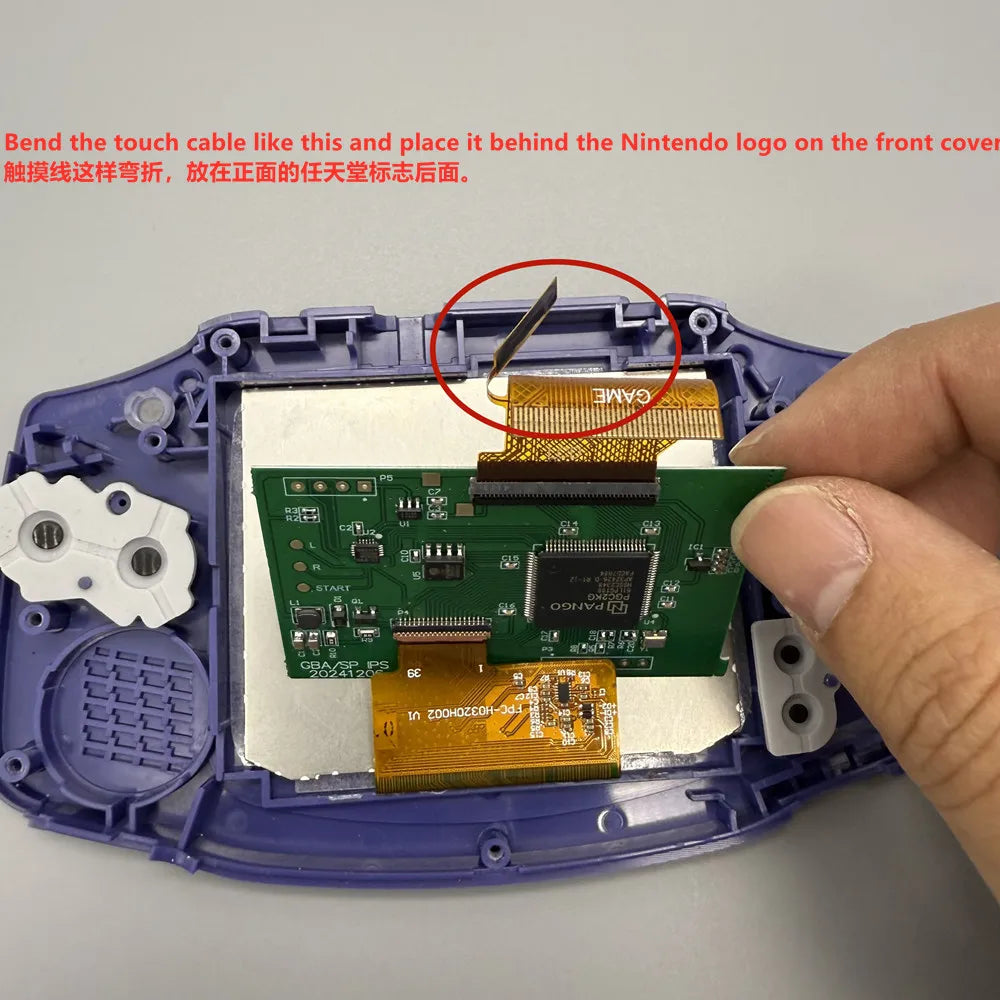

4. Support black and white display. Simulate pixel display. Long press the touch sensing cable for 3 seconds to switch the display style. Briefly press to adjust the brightness.

5. Support brightness adjustment memory and display style memory, and there is no need to reset when starting up.

The package on sale is only different from the mirror, and other configurations are the same. The original mirror can be used. The matching mirrors are made of glass.

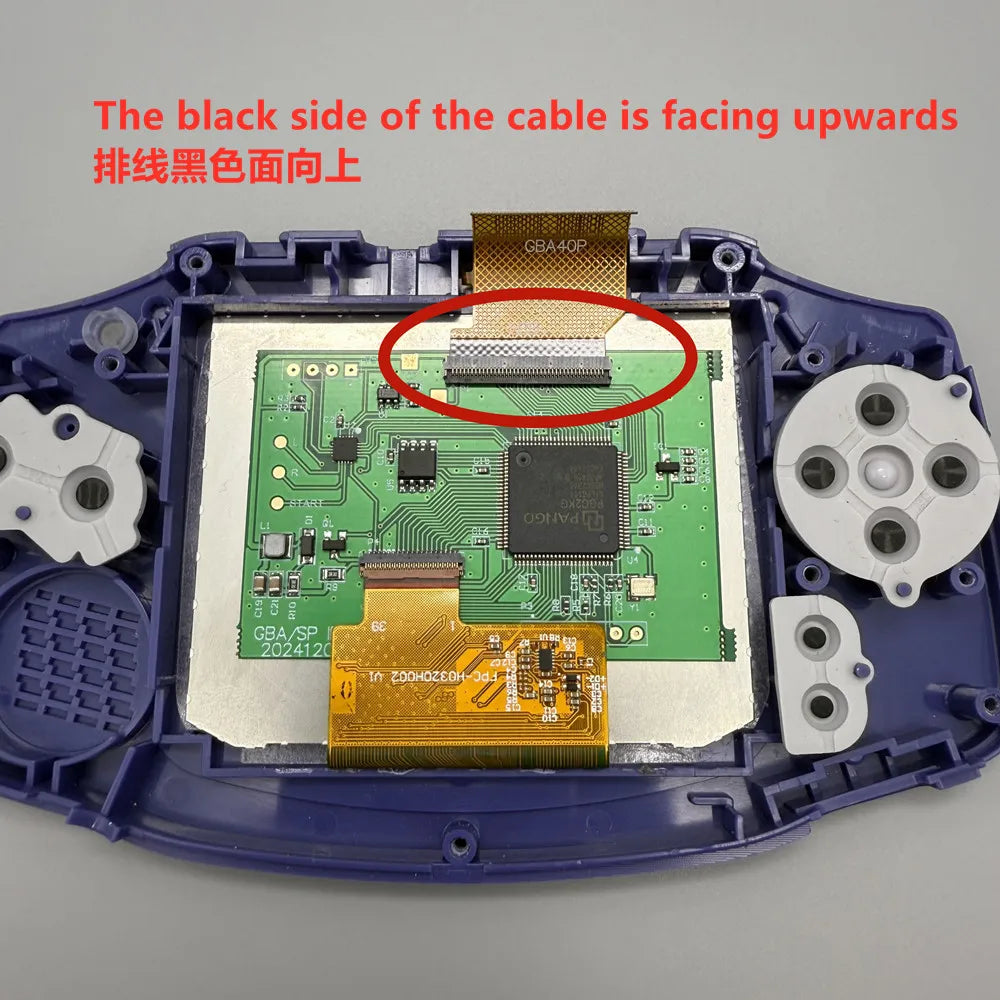

Installation tutorial

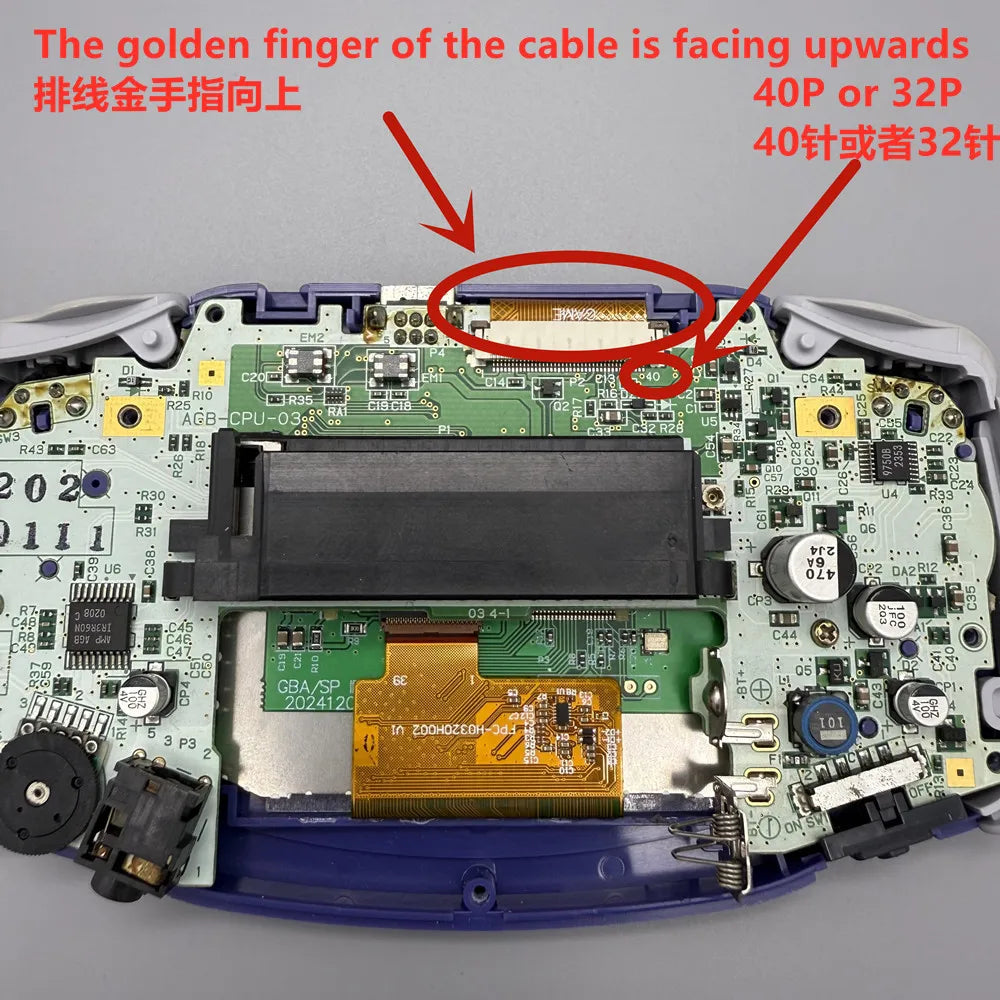

GBA console motherboard LCD cable support is divided into 32 pin and 40 pin. There is a model mark under the cable support. Choose the right cable for yourself.

Use original shells or shells sold in other stores. These raised areas should be trimmed flat, otherwise they will squeeze the LCD screen, causing uneven backlight and slight whitening at the corners of the black background.

Using the shells in our store, which are already flat, you can skip this step.
