2.9"original size IPS high brightness LCD screen is suitable for Gameboy advance SP GBASP support pixel mode display
2.9"original size IPS high brightness LCD screen is suitable for Gameboy advance SP GBASP support pixel mode display
Couldn't load pickup availability
SPECIFICATIONS
Accessories Type: HDMI Port
Brand Name: NICOS
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: GameBoy Advance SP
Electric: No
Hign-concerned Chemical: None
Model Number: NO
Origin: Mainland China
With USB: NO
Not suitable for metal shells!!!!
Not suitable for metal shells!!!!
Not suitable for metal shells!!!!

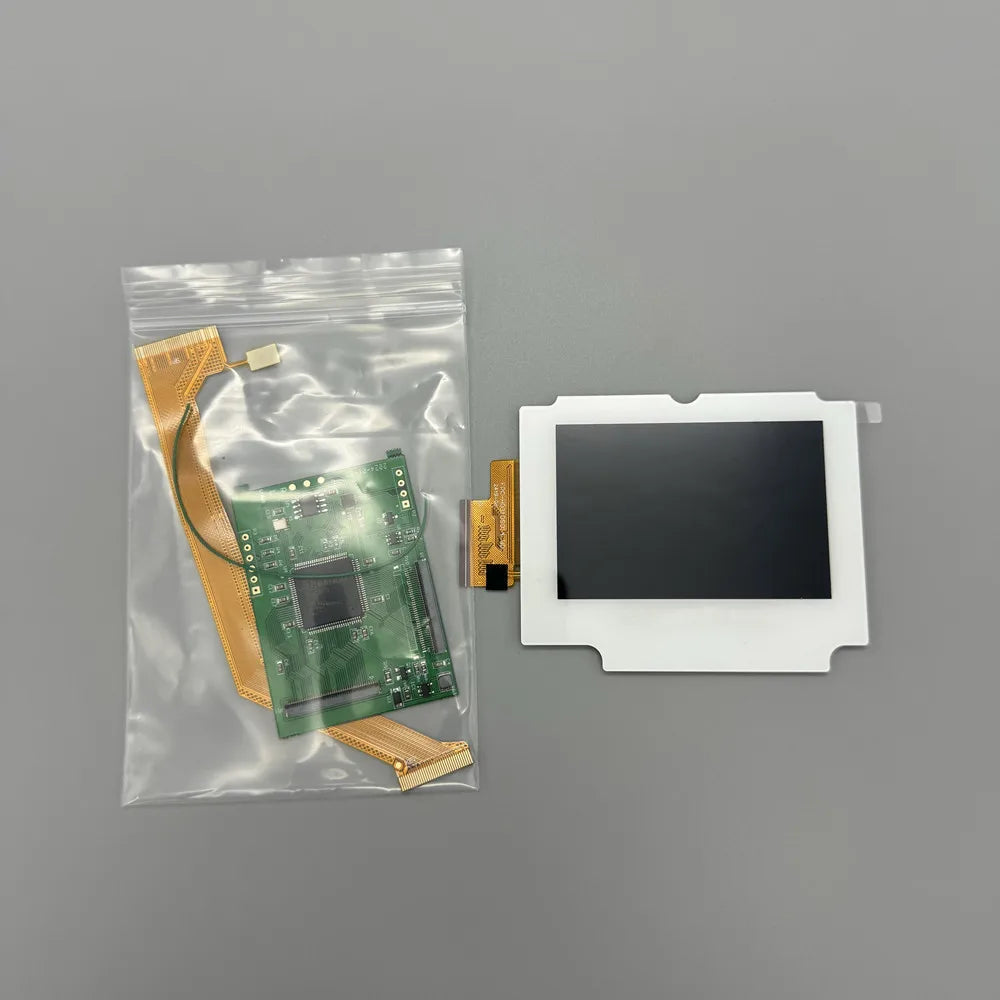

This is a LCD screen, not a console! If you don't have a motherboard, you can't assemble it into a console.
Glass lens with logo
The black lens is actually dark gray. Close to the original Nintendo color. Because we used to call it black. And the color is very close to black. There is color difference in taking photos. It looks like black.
Product features:
1. IPS LCD. Warm color. Easy installation.
2. Support all Nintendo GBASP motherboards. AGS-001 AGS-101
3. The battery life is about 4 hours. The power consumption of different batteries and game card burning card will be different.
4. Support point-to-point display. Black and white display. Short press the touch or key to adjust the brightness, long press the touch or key to switch the display style.
5. Support shutdown brightness memory and display style memory.

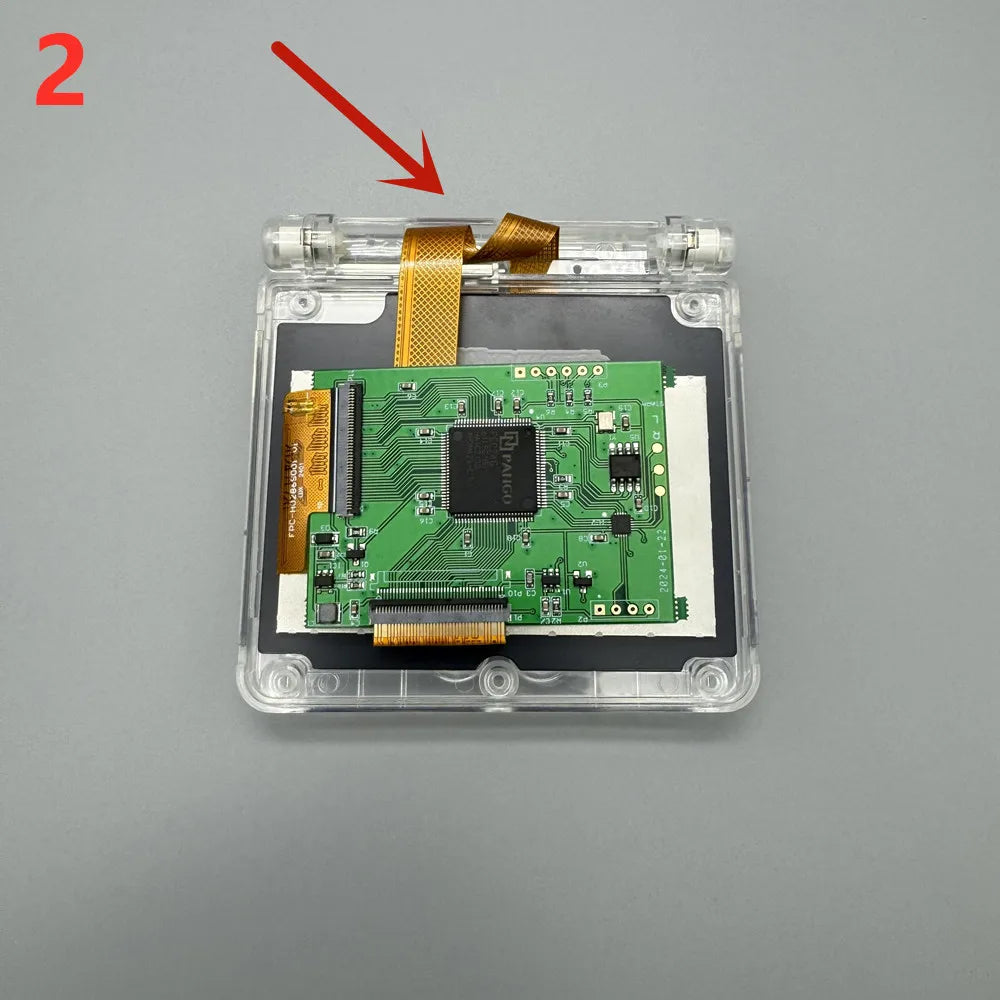

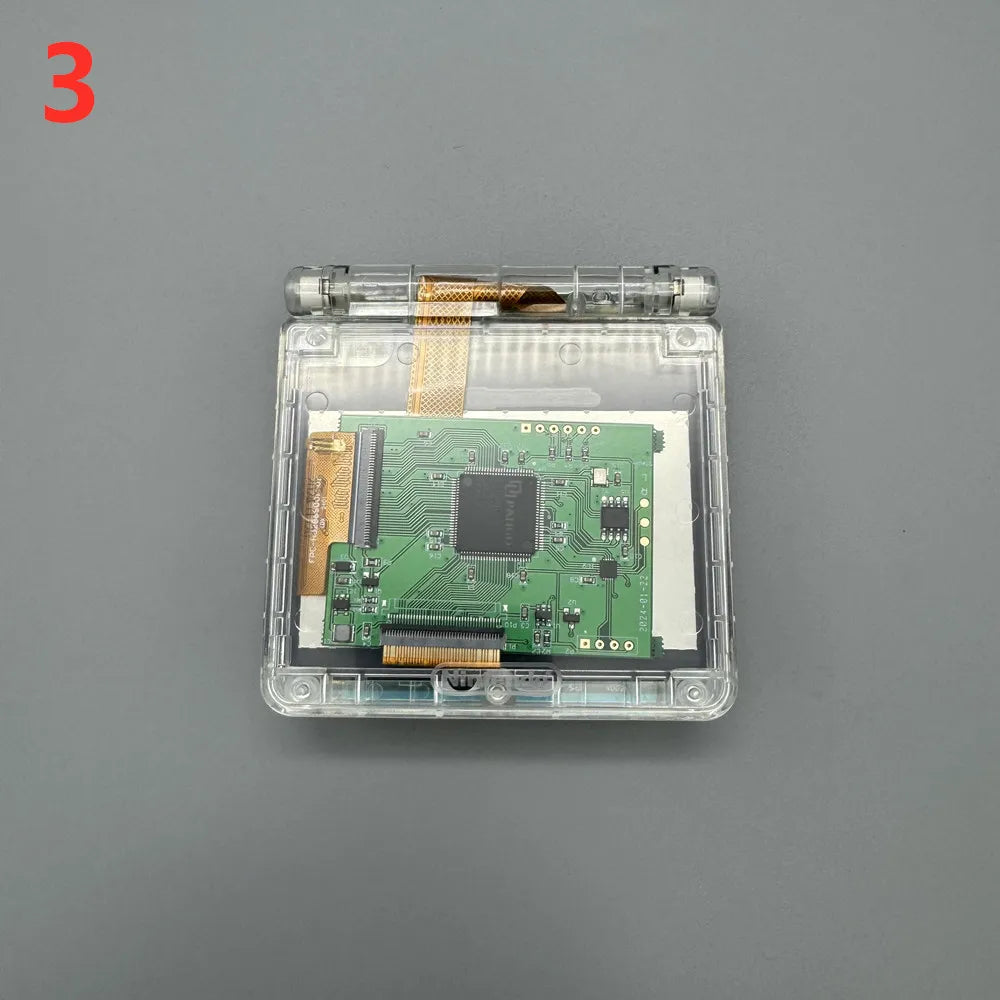

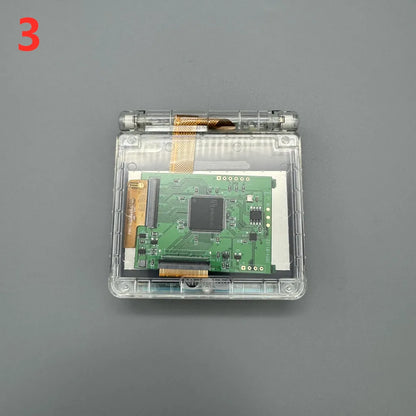

The installation method is as follows, please see the picture.
Self provided installation tools: Y type 3.0 screwdriver, cross type 2.5 screwdriver,Diagonal pliers.
To disassemble GBASP, first remove the motherboard section, and then remove the LCD screen section. Installation, first install the LCD display screen section, and then install the motherboard section.
If you want to replace the casing together, beginners may not know how to disassemble and assemble the shaft. Please search online for tutorials on replacing the GBASP shell. Welding wires is also quite difficult for beginners. Recommend using the original button to adjust brightness. Because touch adjustment is not easy to use.

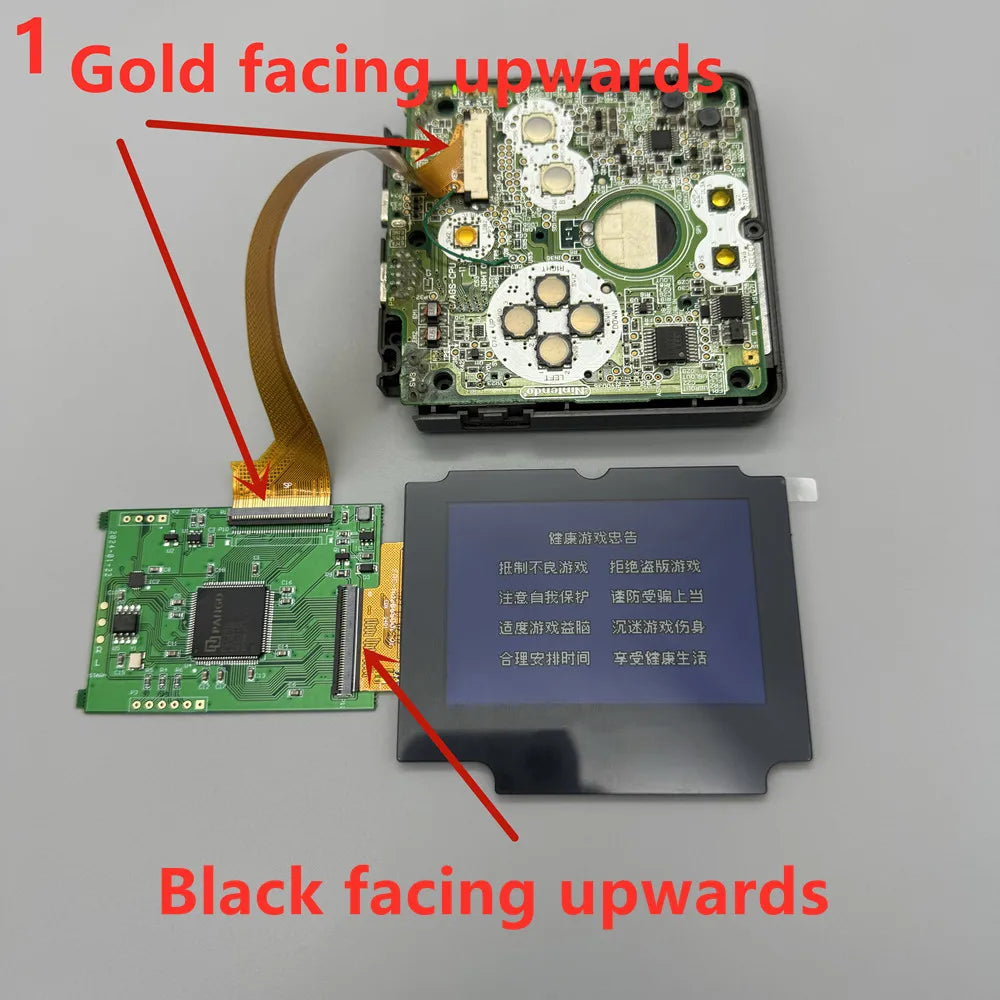

Please be careful. The ribbon cable cannot be inserted in reverse. Will burn out the motherboard.

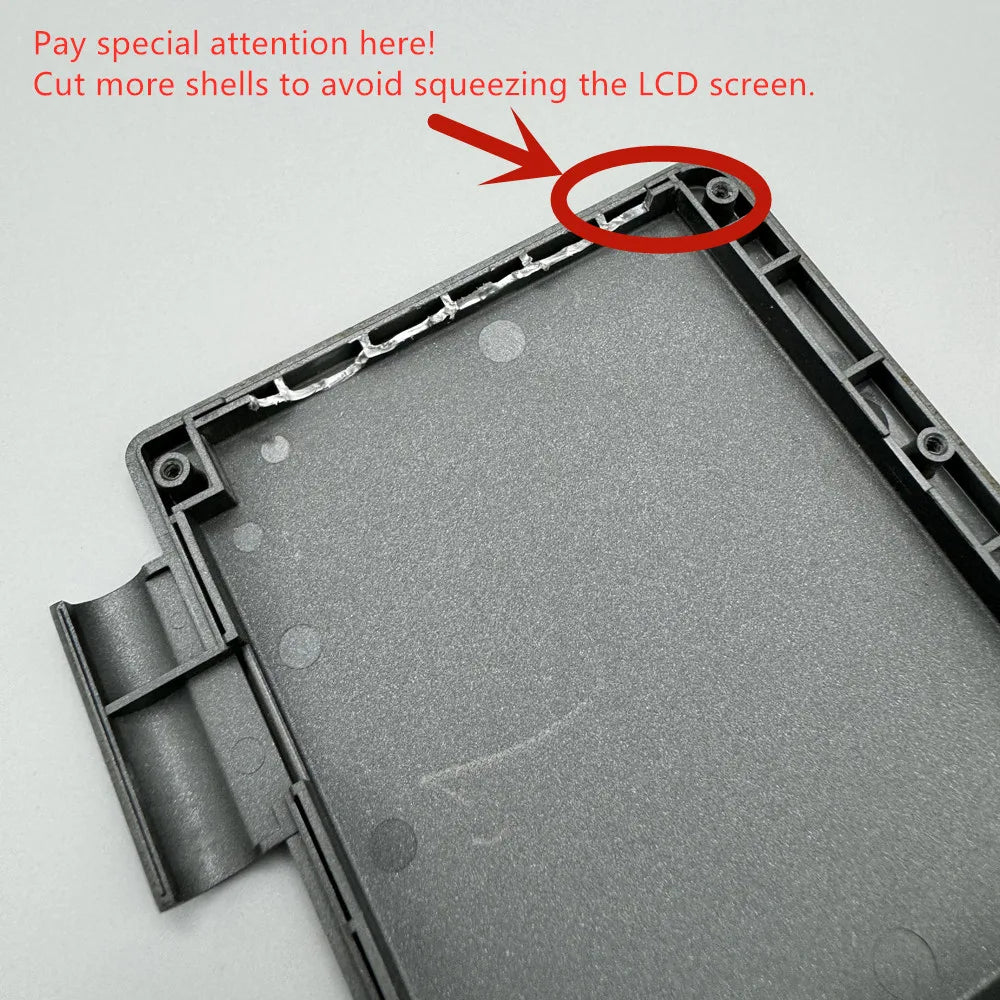

Before installation, the shell must be cut as shown in the diagram below.
The shell cutting must be sufficient. Otherwise, it will squeeze the LCD screen and cause uneven backlight on the LCD screen. The black screen turns white.
U1 is a touch chip. You can remove this chip. Avoid accidentally touching the LCD screen adjustment.

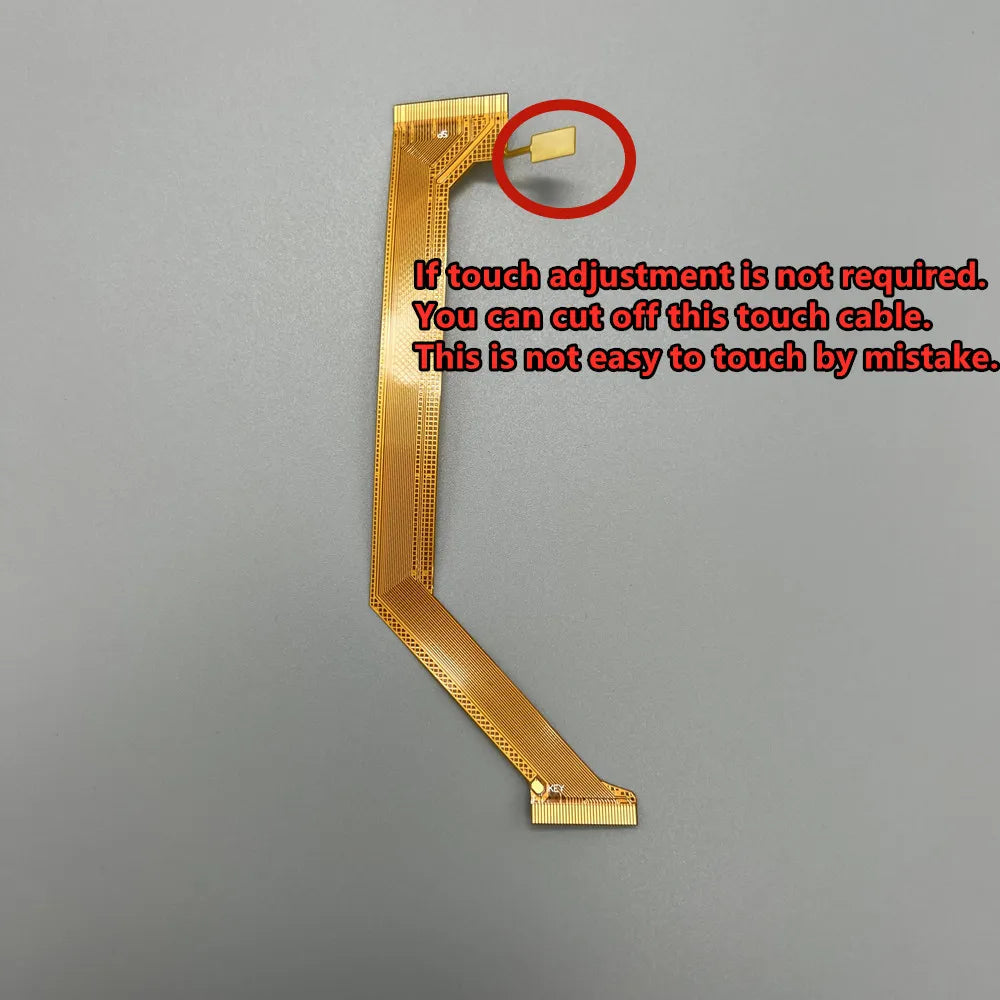

If the metal back shell of the LCD screen comes into contact with the touch head of the ribbon cable, it may accidentally touch.
If there is an accidental touch, please use tape to separate the ribbon cable touch head from the metal shell.
Multiple display modes
In pixel mode, the LCD screen may be affected by electrostatic interference, resulting in abnormal color display. As shown in the following figure.
Stick copper foil or aluminum foil at the position shown in the picture. Can make the color display normal.
At present, we do not know what is willing to cause it.
