2.2 "LCD screen for Nintendo Gameboy pocket GBP. This is an obsolete product. We don't recommend buying!
2.2 "LCD screen for Nintendo Gameboy pocket GBP. This is an obsolete product. We don't recommend buying!
Couldn't load pickup availability
SPECIFICATIONS
Accessories Type: Charging Port
Brand Name: NICOS
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: GameBoy Pocket
Electric: No
Hign-concerned Chemical: None
Model Number: NO
Origin: Mainland China
With USB: NO
This is a LCD screen, not a console! If you don't have a motherboard, you can't assemble it into a console.
This is an obsolete product. We don't recommend buying. The only advantage is that the price is relatively low.
You can buy the new GBP IPS LCD in our store.

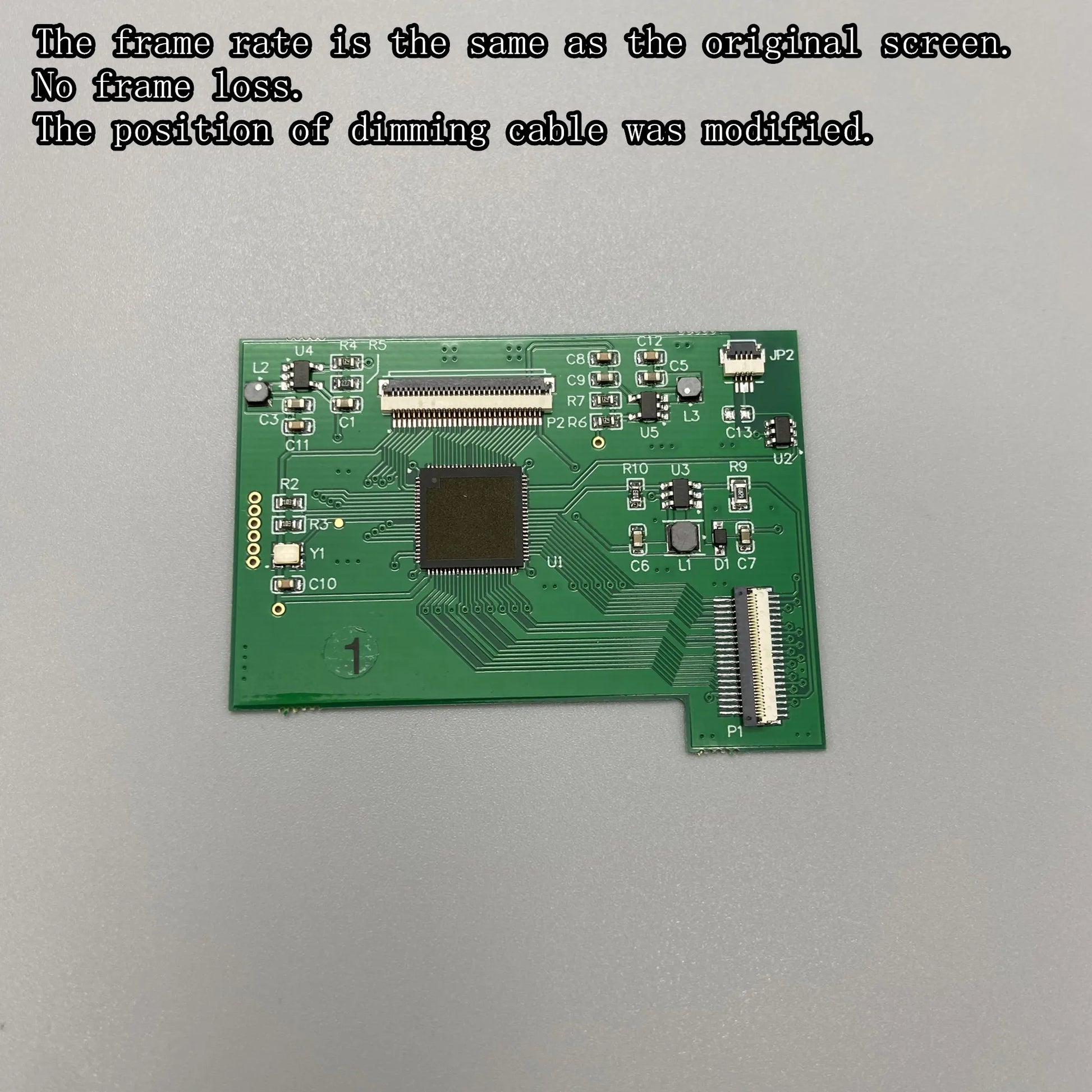

There will be some minor updates to the PCB version. Without further notice.
New version

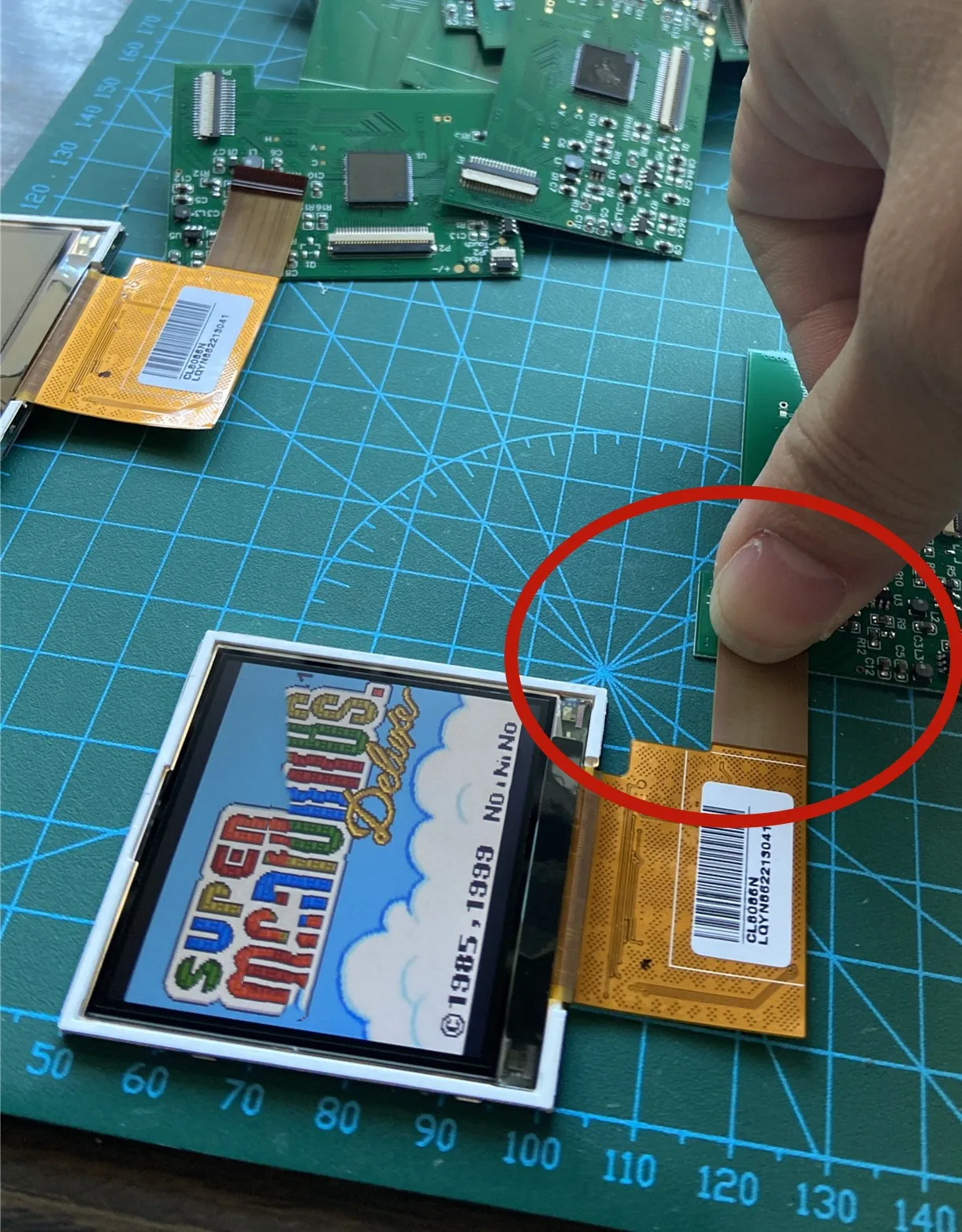

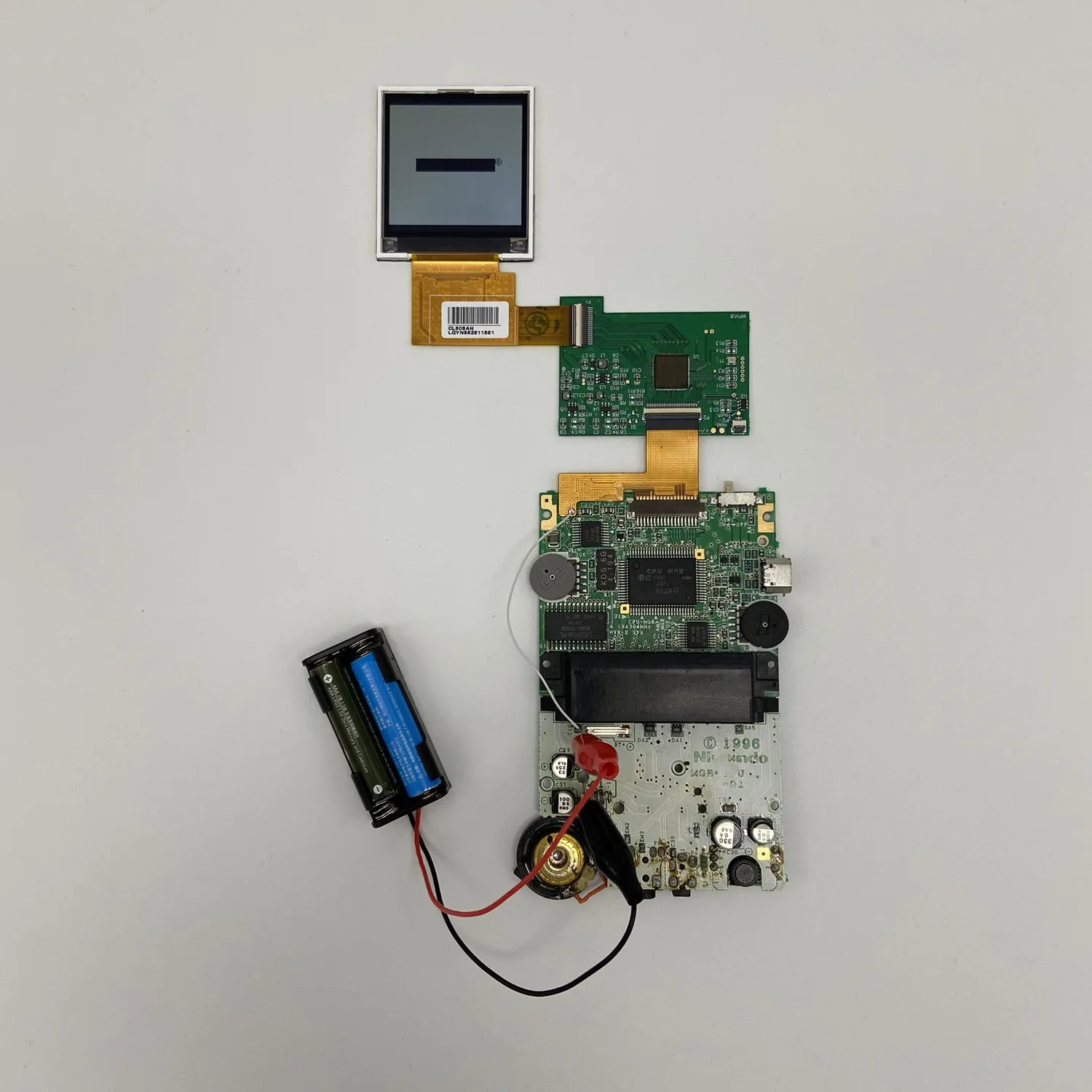

Each set of LCD has been tested before shipment. You can test it again like this before installing.
Test before installation. It is helpful to find out the causes of problems in later installation.
Product features:
1) 2.2-inch reflective TFT LCD screen. No need to cut the shell, simple installation. There is no need to weld.
2) Touch to adjust brightness and change color. Short touch is to adjust backlight brightness, long touch is to change color. Black and white, retro, green, dark yellow, bright yellow five colors adjustable.
3) The usage time is OK. With 900 Ma millet battery, the screen brightness is the highest, and the battery life is 3 to 4 minutes hours. Different game cartridge, use time will be different.
4) The screen display scale is correct, 4 points to 1 point.

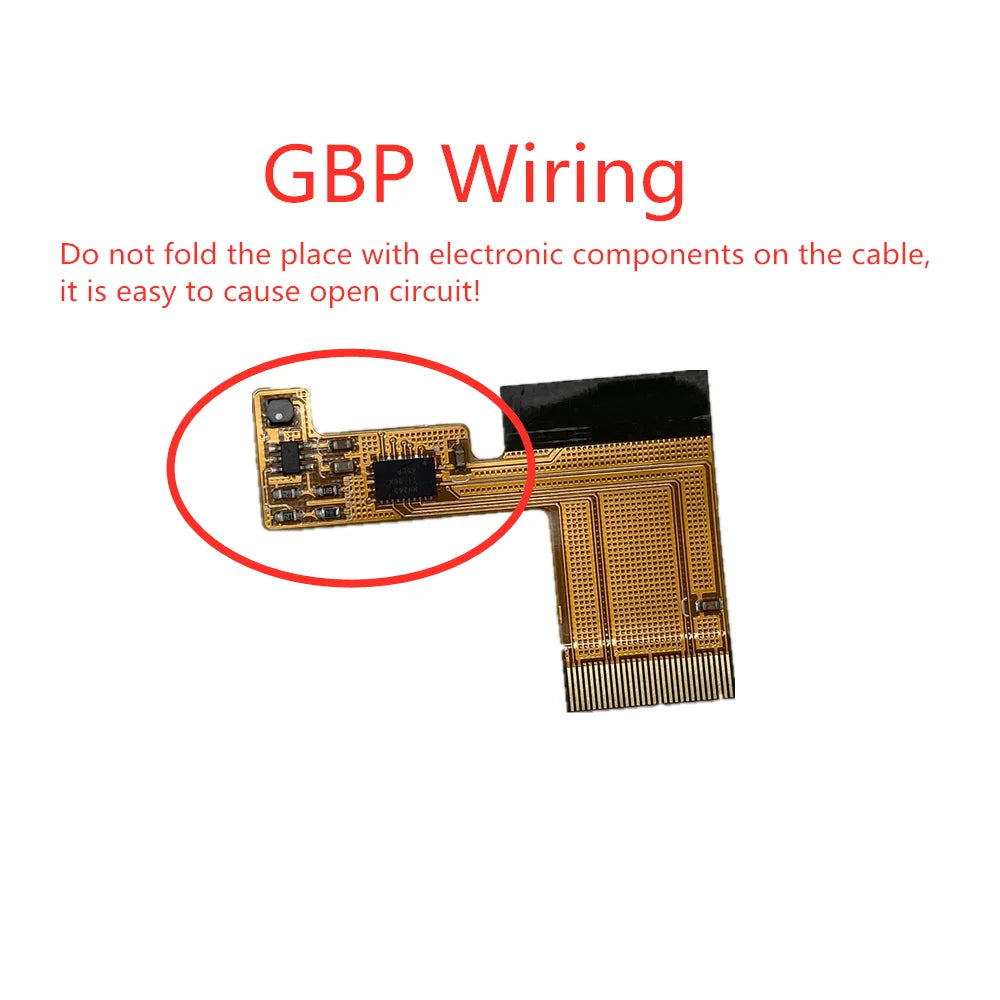

Do not fold the chip on the cable. Once folded, the cable will be damaged, and the LCD screen will not display normally!

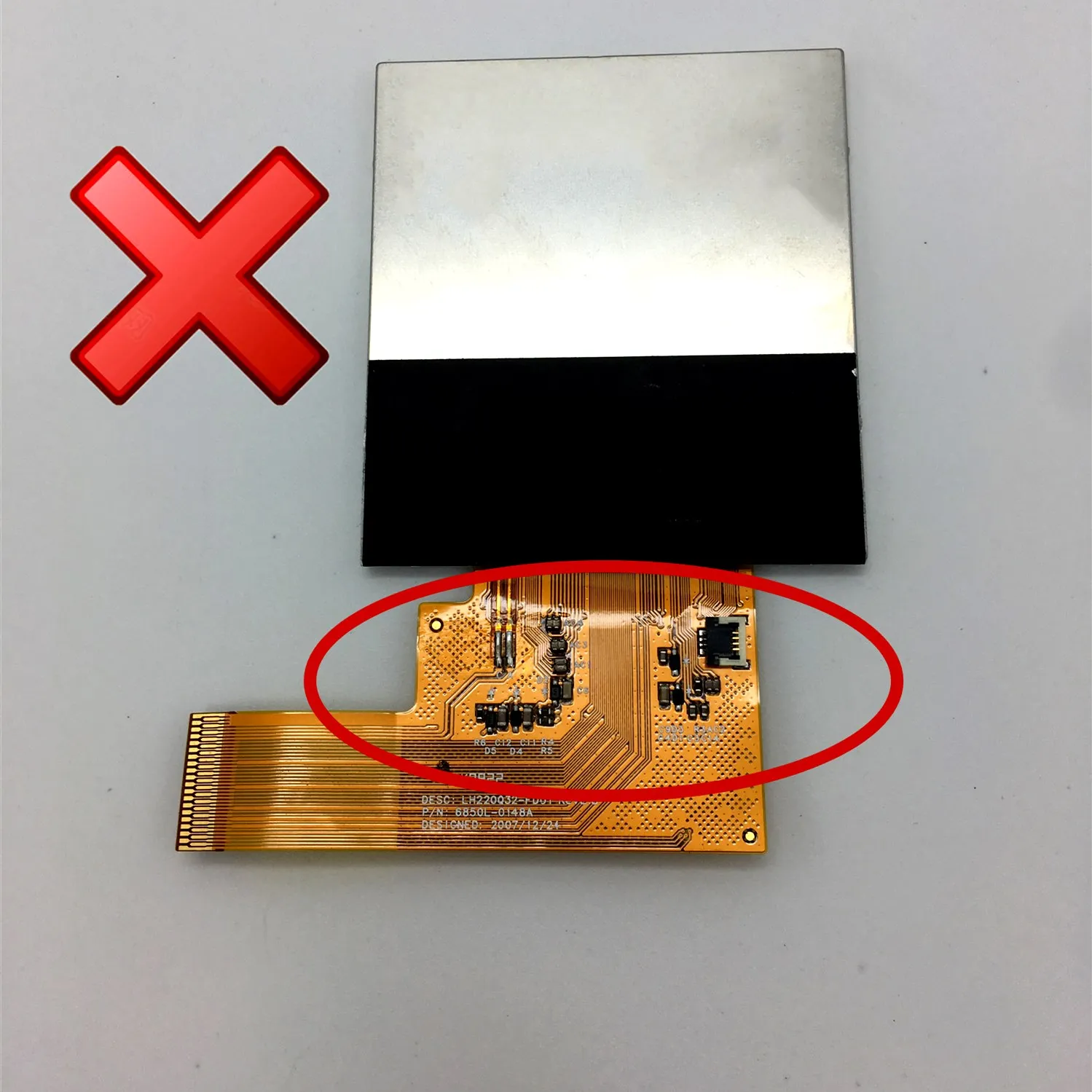

1. Do not fold the LCD cable where there are electronic components!
2. Do not pull the LCD cable!
3. Do not tear off the polarizing film on the LCD screen!
4. The LCD screen should avoid water!
5. Do not paste double-sided tape on the black components and cables at the bottom of LCD screen!
Installation method
https://m.youtube.com/watch?v=gT1XbwIfRYk&list=PLQtzBkZ-AJHY9NAktXkdxjr3gy7x_rJ1y&index=12&t=0s

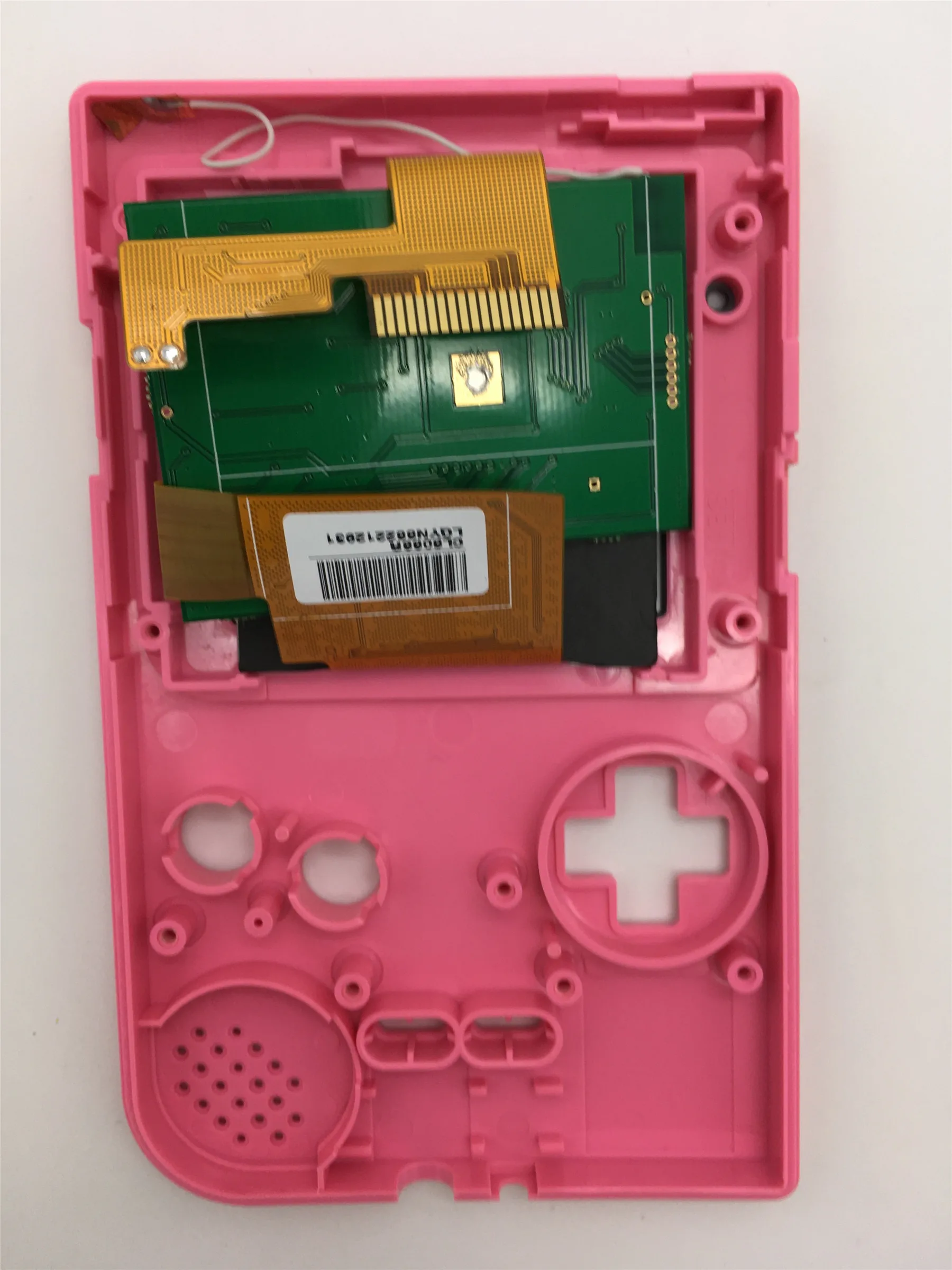

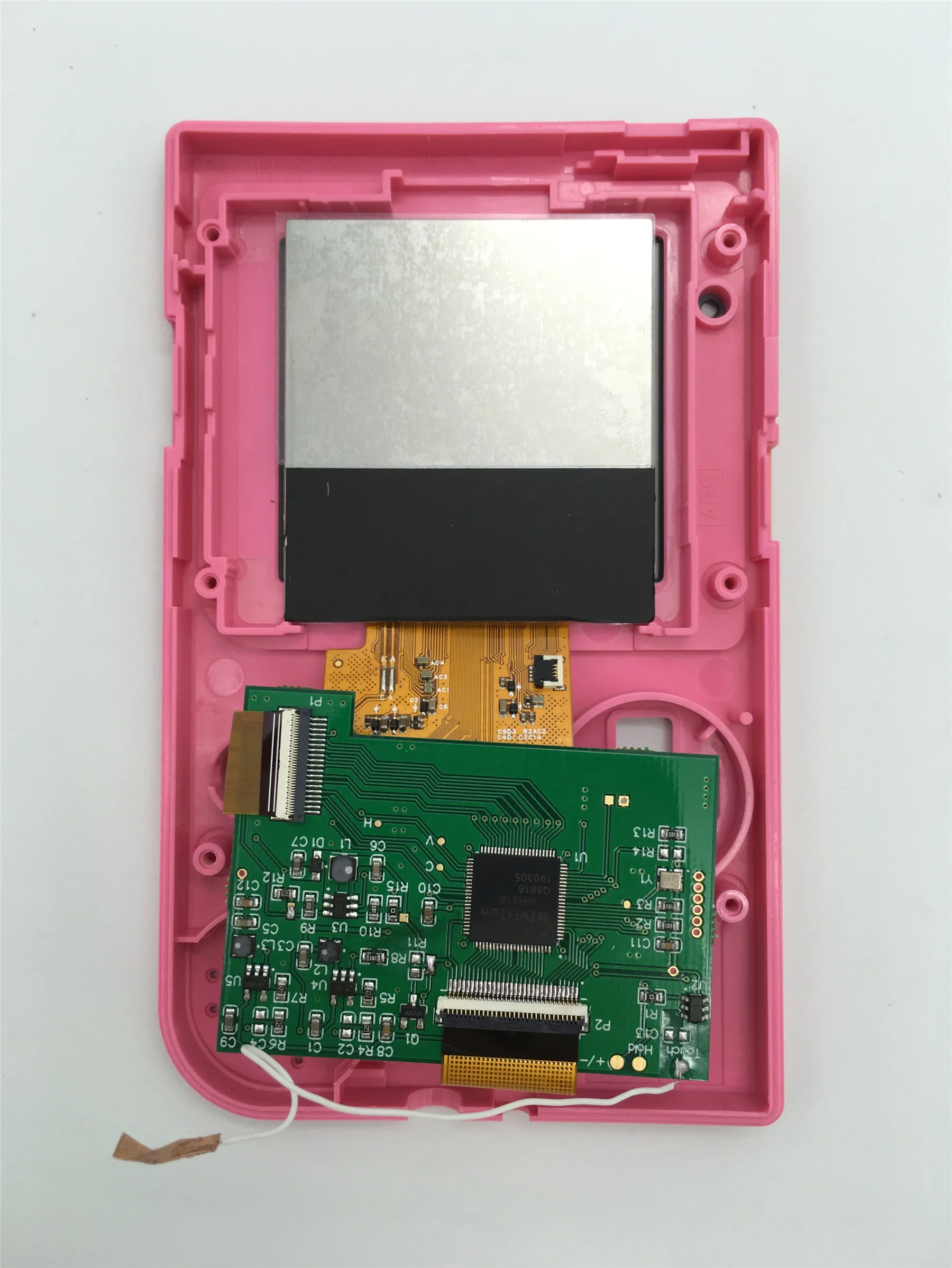

Sponge tape is used to fix the LCD screen, as shown in the following figure.
Latest installation method, no need to cut shell and weld!

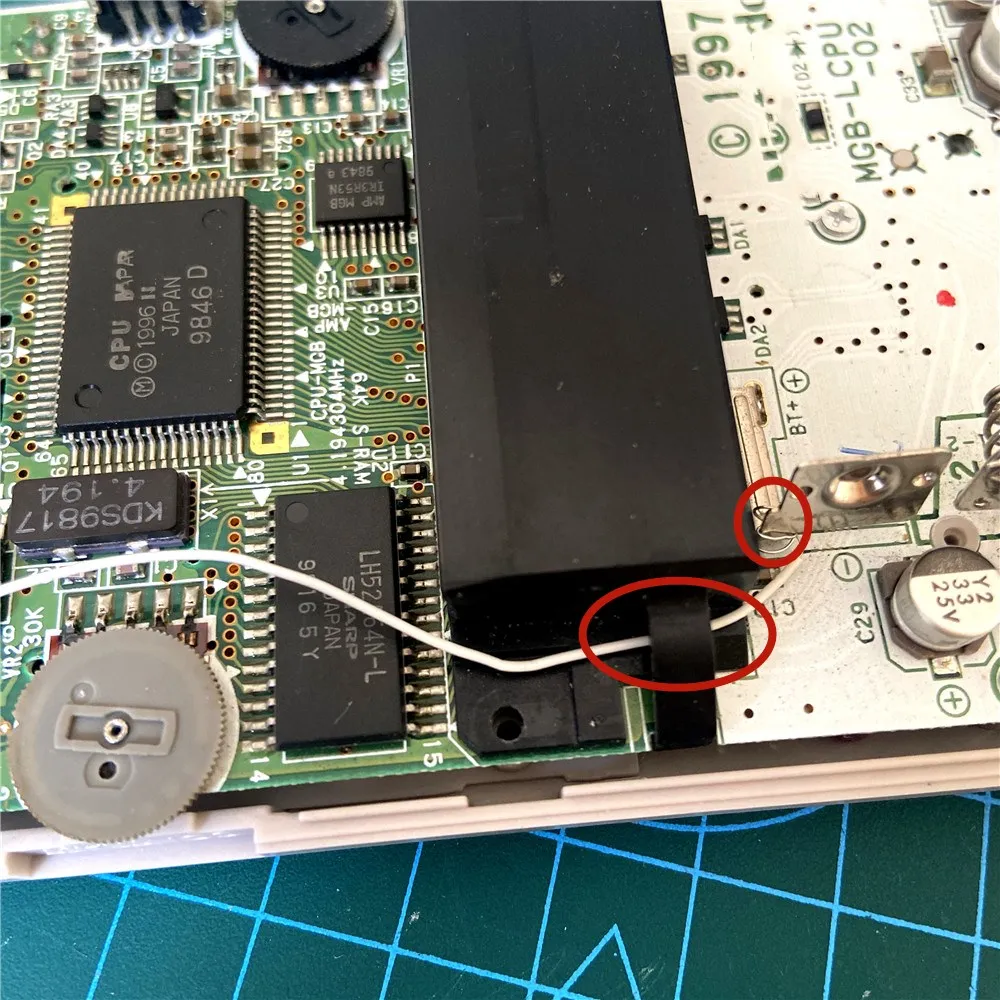

The exposed metal wire shall not touch any metal other than the power supply, which will cause short circuit, the battery will be very hot, and the LCD screen cannot be used.

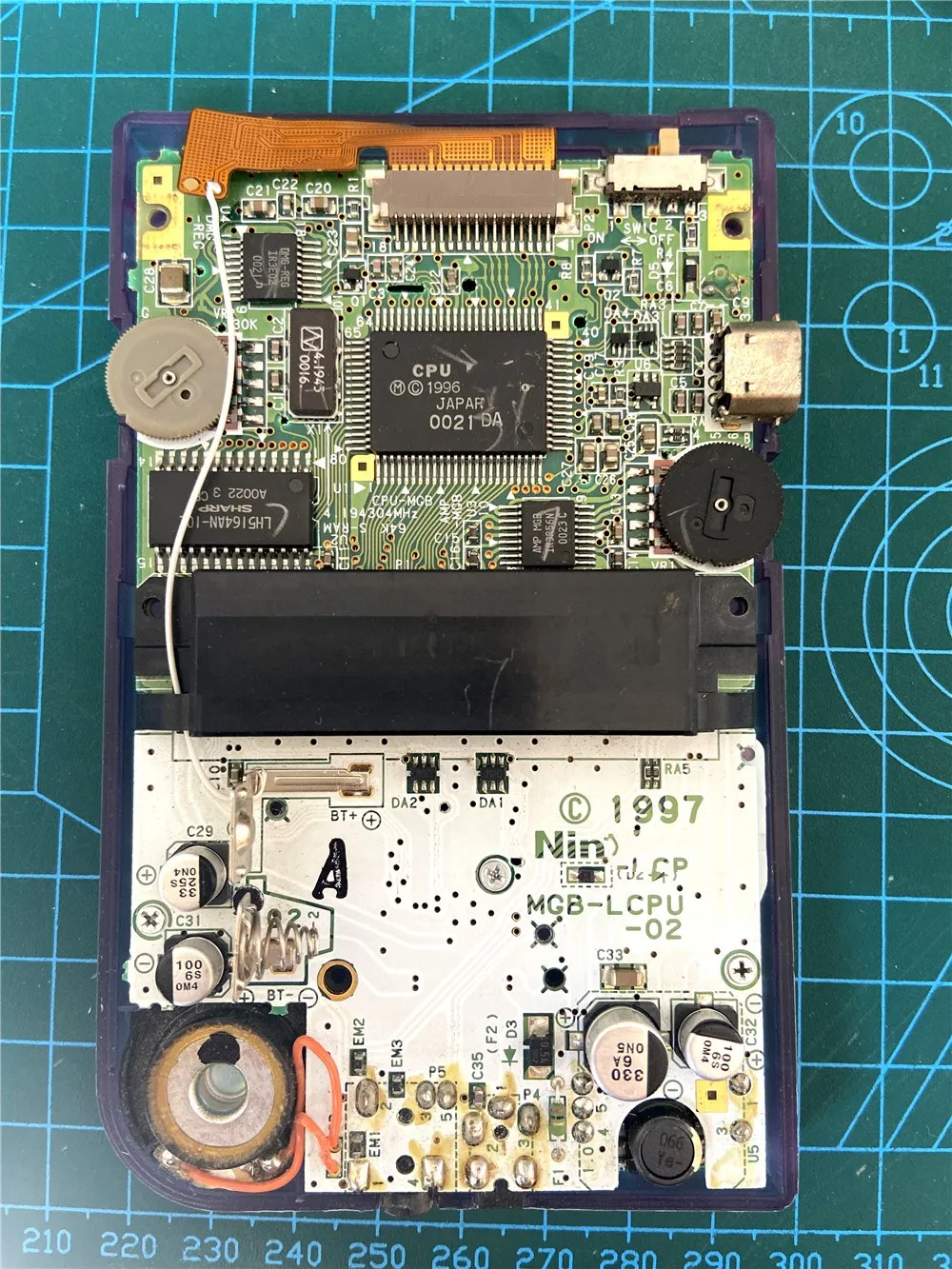

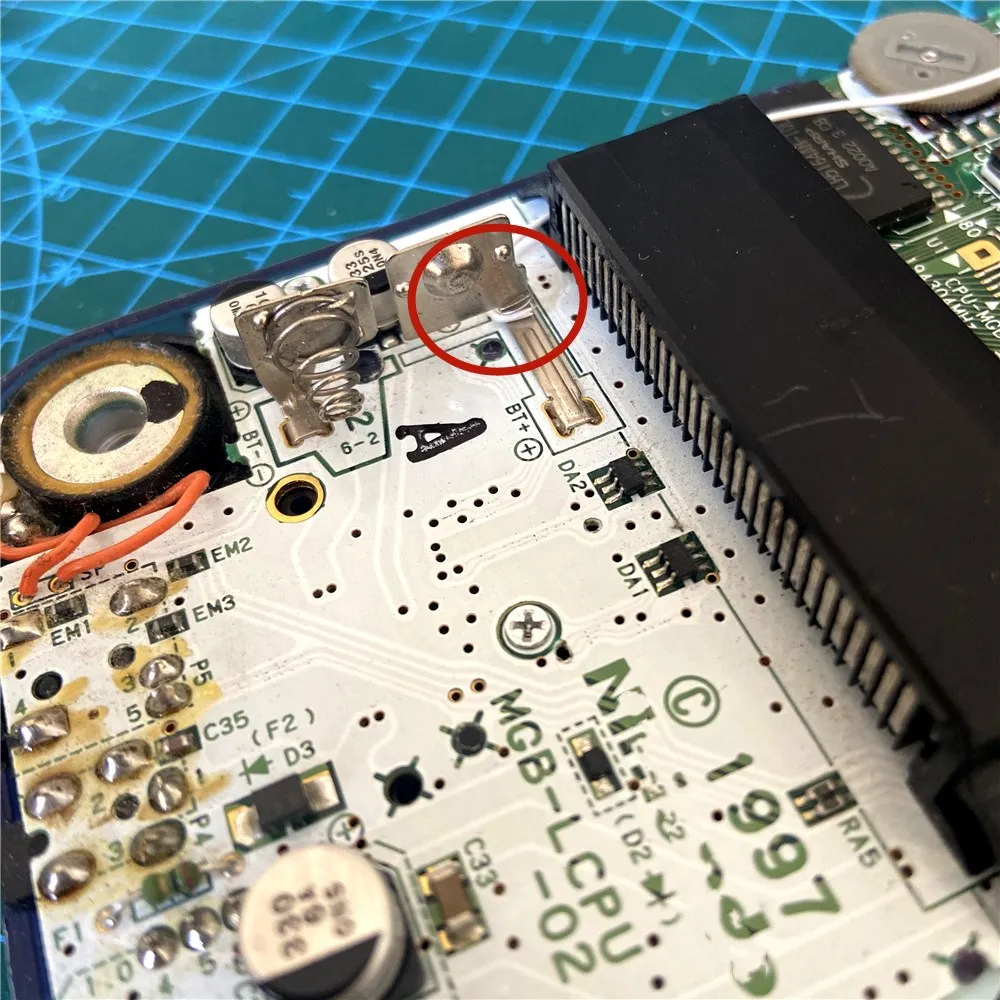

Before delivery, a wire will be welded in the cable arrangement. Just bind the wire to the battery base to make the LCD work normally.
But the solder joint of the wire is relatively small. If it falls off, you need to weld it yourself
